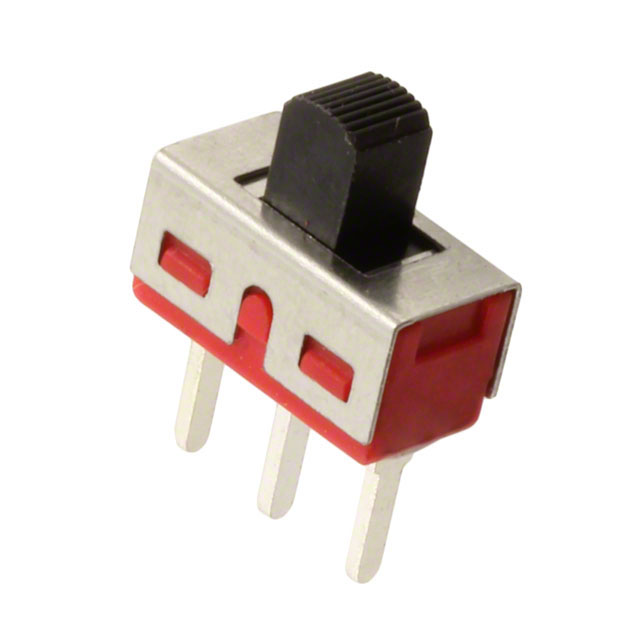

48ASSP3S1M2QBT

Active

Grayhill Inc.

SLIDE SWITCH, PC PIN, SPDT, ON-OFF-ON, THROUGH HOLE, 48A SERIES, 5 A, 125 V

Search across all available documentation for this part.

Active

Grayhill Inc.

SLIDE SWITCH, PC PIN, SPDT, ON-OFF-ON, THROUGH HOLE, 48A SERIES, 5 A, 125 V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Current Rating (Amps)	Features	Actuator Length [x]	Circuit	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Termination Style	Switch Travel [custom]	Actuator Material	Electrical Life	Actuator Type	Mounting Type	Switch Function	Contact Finish	Contact Timing
Grayhill Inc. 48ASSP3S1M2QBT	28 V	5 A	Epoxy Sealed Terminals	5.08 mm	SPDT	Copper Alloy	-30 ░C	85 °C	125 V	PC Pin	2.16 mm	Nylon Polyamide (PA)	30000 Cycles	Standard	Through Hole	On-Off-On	Silver	Not Specified
Grayhill Inc. 48ASSP3S6M7RBT	20 V	0.4 VA	Epoxy Sealed Terminals	12.32 mm	SPDT	Copper Alloy	-30 ░C	85 °C	20 V	PC Pin	2.16 mm	Nylon Polyamide (PA)	30000 Cycles	Standard	Right Angle Through Hole Vertical	On-Off-On	Gold	Not Specified
Grayhill Inc. 48ASSP3S3M2QBT	28 V	5 A	Epoxy Sealed Terminals	9.4 mm	SPDT	Copper Alloy	-30 ░C	85 °C	125 V	PC Pin	2.16 mm	Nylon Polyamide (PA)	30000 Cycles	Standard	Through Hole	On-Off-On	Silver	Not Specified
Grayhill Inc. 48ASSP3S1M6RBT	20 V	0.4 VA	Epoxy Sealed Terminals	5.08 mm	SPDT	Copper Alloy	-30 ░C	85 °C	20 V	PC Pin	2.16 mm	Nylon Polyamide (PA)	30000 Cycles	Standard	Through Hole Right Angle	On-Off-On	Gold	Not Specified
Grayhill Inc. 48ASSP3S4M2RBT	20 V	0.4 VA	Epoxy Sealed Terminals	3.56 mm	SPDT	Copper Alloy	-30 ░C	85 °C	20 V	PC Pin	2.16 mm	Nylon Polyamide (PA)	30000 Cycles	Standard	Through Hole	On-Off-On	Gold	Not Specified

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPDT Through Hole
