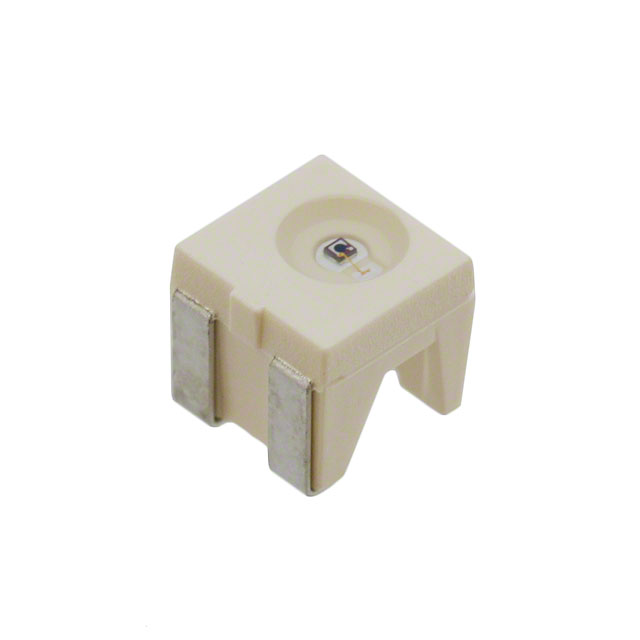

SFH 325-3/4-Z

Active

ams-OSRAM USA INC.

SENSOR PHOTO 980NM SIDE VIEW SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

SENSOR PHOTO 980NM SIDE VIEW SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 325-3/4-Z

Current - Collector (Ic) (Max) [Max]	15 mA
Current - Dark (Id) (Max) [Max]	50 nA
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Side View
Package / Case	2-SMD, Boomerang
Power - Max [Max]	165 mW
Viewing Angle	120 °
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V
Wavelength	980 nm

Part	Current - Dark (Id) (Max) [Max]	Mounting Type	Power - Max [Max]	Wavelength	Operating Temperature [Max]	Operating Temperature [Min]	Viewing Angle	Current - Collector (Ic) (Max) [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Orientation
ams-OSRAM USA INC. SFH 325 FA-4-Z	50 nA	Surface Mount Right Angle	165 mW	980 nm	100 °C	-40 °C	120 °	15 mA	2-LCC	35 V	Side View
ams-OSRAM USA INC. SFH 325 FA-Z	50 nA	Surface Mount Right Angle	165 mW	980 nm	100 °C	-40 °C	120 °	15 mA	2-LCC	35 V	Side View
ams-OSRAM USA INC. SFH 325-Z	50 nA	Surface Mount Right Angle	165 mW	980 nm	100 °C	-40 °C	120 °	15 mA	2-SMD Boomerang	35 V	Side View
ams-OSRAM USA INC. SFH 325 FAG-Z
ams-OSRAM USA INC. SFH 325-3/4-Z	50 nA	Surface Mount Right Angle	165 mW	980 nm	100 °C	-40 °C	120 °	15 mA	2-SMD Boomerang	35 V	Side View
ams-OSRAM USA INC. SFH 325-3-Z	50 nA	Surface Mount Right Angle	165 mW	980 nm	100 °C	-40 °C	120 °	15 mA	2-LCC	35 V	Side View

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 980nm Side View 2-SMD, Boomerang
