241-7-12L

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Search across all available documentation for this part.

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Technical Specifications

Parameters and characteristics for this part

Power Transformers 50\60 Hz, Laminated Transformer

Part	Voltage - Primary	Mounting Type	Primary Winding(s)	Termination Style	Height - Seated (Max) [Max] [z]	Secondary Winding(s)	Weight	Weight	Voltage - Secondary (Full Load)	Voltage - Isolation	Power - Max [Max]	Current - Output (Max) [Max]	Type	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]
Signal Transformer DP-241-5-10	115 V 230 V	Chassis Mount	Dual	Quick Connect Solder	42.8 mm	Single	0.7 lb	317.51 g	10 V	2500 Vrms	12 VA	1.2 A	Laminated Core	36.3 mm	71.4 mm
Signal Transformer DP-241-6-28L	115 V 230 V	Chassis Mount	Dual	Wire Leads	49.8 mm	Single	1.1 lbs	499 g	28 V	2500 Vrms	30 VA		Laminated Core
Signal Transformer 241-8-20L	115 V	Chassis Mount	Single	Wire Leads	67.7 mm	Single	2.8 lbs	1.3 kg	20 V	2500 Vrms	100 VA	5 A	Laminated Core	58.5 mm	102.4 mm
Signal Transformer 241-6-10	115 V	Chassis Mount	Single	Quick Connect Solder	49.8 mm	Single	1.1 lbs	499 g	10 V	2500 Vrms	30 VA	3 A	Laminated Core

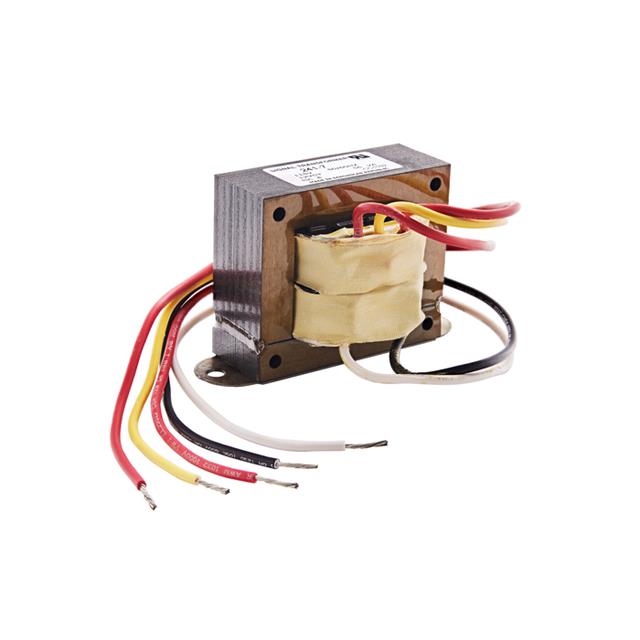

Signal Transformer 241-7-12L	115 V	Chassis Mount	Single	Wire Leads		Single	1.7 lbs	771.1 g	12.6 V	2500 Vrms	56 VA	4 A	Laminated Core	49.2 mm	93.7 mm	57.8 mm
Signal Transformer DP-241-6-24L	115 V 230 V	Chassis Mount	Dual	Wire Leads	49.8 mm	Single	1.1 lbs	499 g	24 V	2500 Vrms	30 VA	1.25 A	Laminated Core
