REC7.5-2415DRW/H2/A/M/SMD/CTRL-R

Active

RECOM Power

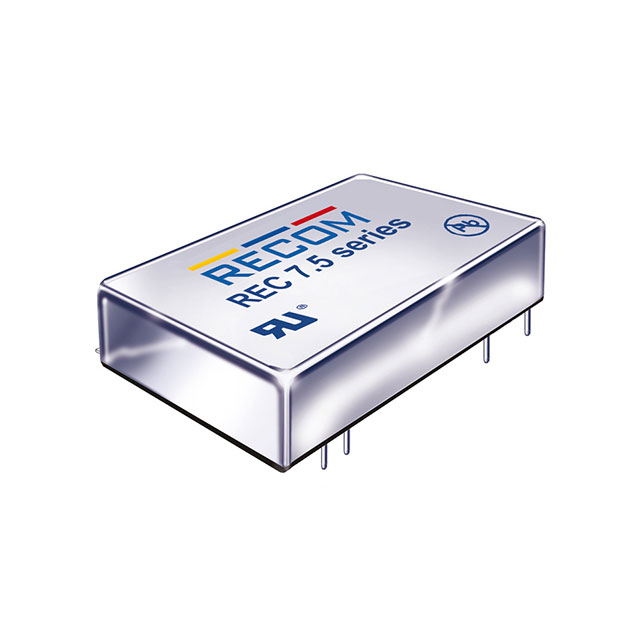

DC DC CONVERTER +/-15V 8W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

REC7.5-2415DRW/H2/A/M/SMD/CTRL-R

Active

RECOM Power

DC DC CONVERTER +/-15V 8W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC7.5-2415DRW/H2/A/M/SMD/CTRL-R

Applications	ITE (Commercial), Medical
Control Features	Active Low, Enable
Current - Output (Max)	250 mA
Current - Output (Max)	250 mA
Efficiency	86 %
Features	Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-SMD Module, 18 Leads
Power (Watts)	8 W
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	19.9 mm
Size / Dimension [y]	0.78 in
Size / Dimension [z]	11.2 mm
Size / Dimension [z]	0.44 "
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

REC7.5-S_DRW Series

Isolated DC/DC Converters - Through Hole 7.5W DC/DC 3kV REG 2:1 18-36Vin 12Vout

...

Part	Power (Watts)	Type	Voltage - Isolation	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Mounting Type	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Control Features	Features	Efficiency	Applications	Package / Case	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [z]
RECOM Power REC7.5-243.3SRW/H1/A/M/SMD/CTRL	8 W	Isolated Module	1000 V	36 V	-40 °C	71 °C	3.3 V	Surface Mount	1	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	18 V	Active Low Enable	Remote On/Off SCP	78 %	ITE (Commercial) Medical	24-SMD Module 18 Leads	1.8 A
RECOM Power REC7.5-2415DRW/H2/A/M/SMD	8 W	Isolated Module	2000 V	36 V	-40 °C	71 °C	15 V	Surface Mount	2	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	18 V		SCP	86 %	ITE (Commercial) Medical	24-SMD Module 18 Leads		-15 V	250 mA	250 mA
RECOM Power REC7.5-2415DRW/H2/A/M/SMD/CTRL-R	8 W	Isolated Module	2000 V	36 V	-40 °C	71 °C	15 V	Surface Mount	2	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	18 V	Active Low Enable	Remote On/Off SCP	86 %	ITE (Commercial) Medical	24-SMD Module 18 Leads		-15 V	250 mA	250 mA
RECOM Power REC7.5-1215DRW/H1/A/M/SMD-R	8 W	Isolated Module	1000 V	18 V	-40 °C	71 °C	15 V	Surface Mount	2	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	9 V		SCP	86 %	ITE (Commercial) Medical	24-SMD Module 18 Leads		-15 V	250 mA	250 mA
RECOM Power REC7.5-4809SRW/H1/A/M/CTRL	8 W	Isolated Module	1000 V	72 V	-40 °C	71 °C	9 V	Through Hole	1			32 mm	0.8 in	1.26 in	0.41 "	36 V	Active Low Enable	Remote On/Off SCP	84 %	ITE (Commercial) Medical	24-DIP Module 8 Leads	833 mA				20.3 mm	10.5 mm
RECOM Power REC7.5-2405SRW/H3/A/M	8 W	Isolated Module	3000 V	36 V	-40 °C	71 °C	5 V	Through Hole	1			32 mm	0.8 in	1.26 in	0.41 "	18 V		SCP		ITE (Commercial) Medical	24-DIP Module 8 Leads	1.5 A				20.3 mm	10.5 mm
RECOM Power REC7.5-1205SRW/H2/A/M/SMD/CTRL	8 W	Isolated Module	2000 V	18 V	-40 °C	71 °C	5 V	Surface Mount	1	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	9 V	Active Low Enable	Remote On/Off SCP		ITE (Commercial) Medical	24-SMD Module 18 Leads	1.5 A
RECOM Power REC7.5-1205DRW/H1/A/M/CTRL	8 W	Isolated Module	1000 V	18 V	-40 °C	71 °C	5 V	Through Hole	2			32 mm	0.8 in	1.26 in	0.41 "	9 V	Active Low Enable	Remote On/Off SCP		ITE (Commercial) Medical	24-DIP Module 8 Leads		-5 V	750 mA	750 mA	20.3 mm	10.5 mm
RECOM Power REC7.5-4805DRW/H2/A/M	8 W	Isolated Module	2000 V	72 V	-40 °C	71 °C	5 V	Through Hole	2			32 mm	0.8 in	1.26 in	0.41 "	36 V		SCP		ITE (Commercial) Medical	24-DIP Module 8 Leads		-5 V	750 mA	750 mA	20.3 mm	10.5 mm
RECOM Power REC7.5-1209SRW/H2/A/M/CTRL	8 W	Isolated Module	2000 V	18 V	-40 °C	71 °C	9 V	Through Hole	1			32 mm	0.8 in	1.26 in	0.41 "	9 V	Active Low Enable	Remote On/Off SCP	84 %	ITE (Commercial) Medical	24-DIP Module 8 Leads	833 mA				20.3 mm	10.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 34.55
	Digi-Reel®	1	$ 36.14
	Tape & Reel (TR)	100	$ 30.06

Description

General part information

REC7.5-S_DRW Series

Isolated DC/DC Converters - Through Hole 7.5W DC/DC 3kV REG 2:1 18-36Vin 12Vout

Documents

Technical documentation and resources
