AS1108PL

Obsolete

ams-OSRAM USA INC.

IC DRVR 7 SEGMENT 4 DIGIT 20DIP

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

IC DRVR 7 SEGMENT 4 DIGIT 20DIP

Technical Specifications

Parameters and characteristics for this part

Specification	AS1108PL

Configuration	DP, 7 Segment
Current - Supply	330 mA
Digits or Characters	4 Digits
Display Type	LED
Interface	QSPI, SPI, 4-Wire Serial, Microwire
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C

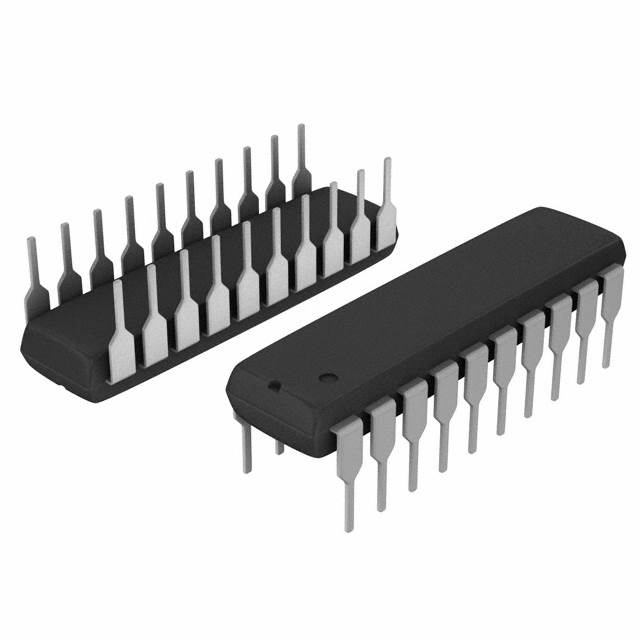

Package / Case	20-DIP
Package / Case	7.62 mm
Package / Case	0.3 in
Supplier Device Package	20-DIP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Part	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Interface	Supplier Device Package	Current - Supply	Operating Temperature [Max]	Configuration	Package / Case	Package / Case	Package / Case	Digits or Characters	Package / Case [y]	Package / Case [y]
ams-OSRAM USA INC. AS1108PL-Z	LED	2.7 V	5.5 V	Through Hole	4-Wire Serial Microwire QSPI SPI	20-DIP	330 mA	70 °C	7 Segment DP	20-DIP	7.62 mm	0.3 in	4 Digits
ams-OSRAM USA INC. AS1108PL	LED	2.7 V	5.5 V	Through Hole	4-Wire Serial Microwire QSPI SPI	20-DIP	330 mA	70 °C	7 Segment DP	20-DIP	7.62 mm	0.3 in	4 Digits
ams-OSRAM USA INC. AS1108WL-Z	LED	2.7 V	5.5 V	Surface Mount	4-Wire Serial Microwire QSPI SPI	20-SOIC	330 mA	70 °C	7 Segment DP	20-SOIC			4 Digits	0.295 in	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver 20-DIP
