SM0605BC-R/B
ActiveBivar Inc.

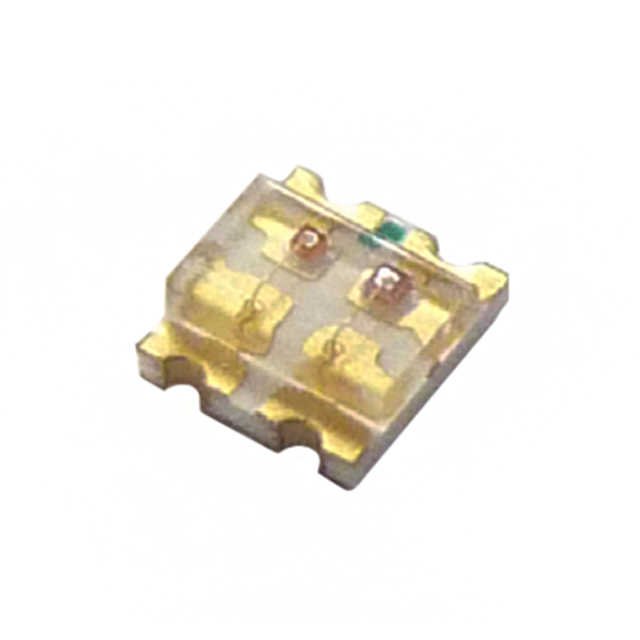

LED BI-COLOR BLUE/RED 468NM/630NM 4-PIN CHIP 0605 T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM0605BC-R/B
ActiveBivar Inc.
LED BI-COLOR BLUE/RED 468NM/630NM 4-PIN CHIP 0605 T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM0605BC-R/B |
|---|---|
| Color | Blue, Red |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 0.85 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.5 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 225 mcd, 145 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0605 (1613 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | 0605 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 2V Red |
| Wavelength - Dominant | 470 nm, 625 nm |
| Wavelength - Peak [custom] | 630 nm |
| Wavelength - Peak [custom] | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| 10 | $ 0.48 | |||
| 100 | $ 0.32 | |||
| 1000 | $ 0.25 | |||
| 2000 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.73 | ||
| 10 | $ 0.48 | |||
| 100 | $ 0.32 | |||
| 1000 | $ 0.25 | |||
| 2000 | $ 0.22 | |||
| Tape & Reel (TR) | 4000 | $ 0.22 | ||
| 8000 | $ 0.21 | |||
| 12000 | $ 0.20 | |||
| 28000 | $ 0.20 | |||
Description
General part information
SM0605 Series
Blue, Red 470nm Blue, 625nm Red LED Indication - Discrete 3.3V Blue, 2V Red 0605 (1613 Metric)
