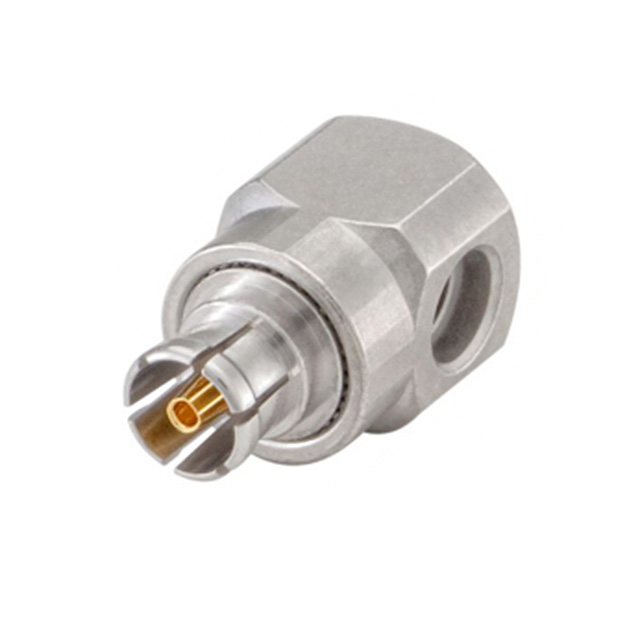

119K207-272N5

Obsolete

Rosenberger

CONN PSMP JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Obsolete

Rosenberger

CONN PSMP JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	119K207-272N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	PSMP
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Center Contact Material	Number of Ports	Impedance	Connector Type	Connector Style	Center Contact Plating	Shield Termination	Mounting Type	Includes	Fastening Type	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Frequency - Max [Max]	Contact Termination	Housing Color	Voltage Rating	Dielectric Material
Rosenberger 119K207-272N5	Beryllium Copper	1	50 Ohms	Female Socket Jack	PSMP	Gold	Solder	Free Hanging (In-Line) Right Angle	1 Connector 1 End Cap	Snap-On	White Bronze	-65 ░C	165 °C	Brass	10 GHz	Solder	Silver	480 V	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PSMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
