325211-04-0

Active

Curtis Industries

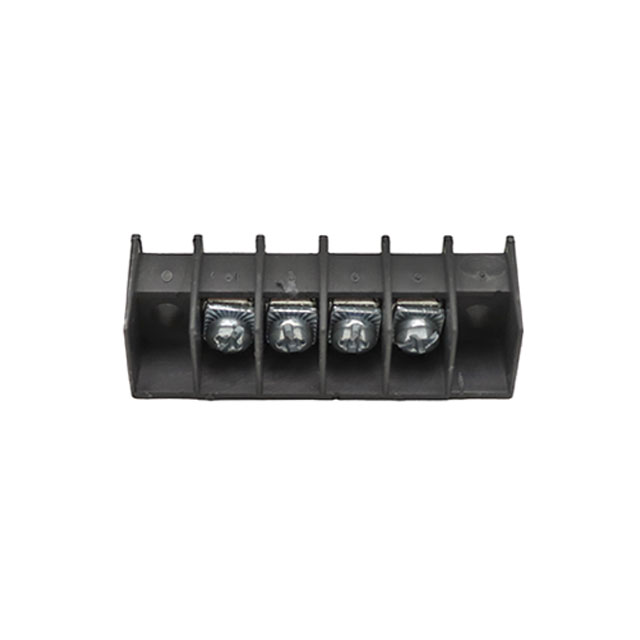

CONN BARRIER STRIP 4CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

325211-04-0

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.325"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325211-04-0

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	4
Number of Rows	1
Number of Wire Entries	4
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325211 Series

Part	Bottom Termination	Mounting Type	Barrier Type	Pitch [x]	Pitch [x]	Terminal Block Type	Material - Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Features	Current Rating (Amps)	Material Flammability Rating	Top Termination	Voltage Rating	Number of Circuits	Number of Rows	Operating Temperature	Number of Wire Entries	Number of Wire Entries [custom]
Curtis Industries 325211-04-0	PC Pin	Chassis Panel Through Hole	3 Wall (Tri)	8.26 mm	0.325 in	Barrier Block	Polypropylene (PP)	14 AWG	22 AWG	Flange	15 A	UL94 V-0	Screws	300 VDC	4	1	105 C	4
Curtis Industries 325211-19-0	PC Pin	Chassis Panel Through Hole	3 Wall (Tri)	8.26 mm	0.325 in	Barrier Block	Polypropylene (PP)	14 AWG	22 AWG	Flange	15 A	UL94 V-0	Screws	300 VDC	19	1	105 C	19
Curtis Industries 325211-06-0	PC Pin	Chassis Panel Through Hole	3 Wall (Tri)	8.26 mm	0.325 in	Barrier Block	Polypropylene (PP)	14 AWG	22 AWG	Flange	15 A	UL94 V-0	Screws	300 VDC	6	1	105 C	6
Curtis Industries 325211-17-0	PC Pin	Chassis Panel Through Hole	3 Wall (Tri)	8.26 mm	0.325 in	Barrier Block	Polypropylene (PP)	14 AWG	22 AWG	Flange	15 A	UL94 V-0	Screws	300 VDC	17	1	105 C	17
Curtis Industries 325211-11-0	PC Pin	Chassis Panel Through Hole	3 Wall (Tri)	8.26 mm	0.325 in	Barrier Block	Polypropylene (PP)	14 AWG	22 AWG	Flange	15 A	UL94 V-0	Screws	300 VDC	11	1	105 C	11
Curtis Industries 325211-01-0	PC Pin	Chassis Panel Through Hole	3 Wall (Tri)			Barrier Block	Polypropylene (PP)	14 AWG	22 AWG	Flange	15 A	UL94 V-0	Screws	300 VDC	1	1	105 C		1
Curtis Industries 325211-15-0	PC Pin	Chassis Panel Through Hole	3 Wall (Tri)	8.26 mm	0.325 in	Barrier Block	Polypropylene (PP)	14 AWG	22 AWG	Flange	15 A	UL94 V-0	Screws	300 VDC	15	1	105 C	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.40
		10	$ 2.59
		30	$ 2.43

Description

General part information

325211 Series

4 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
