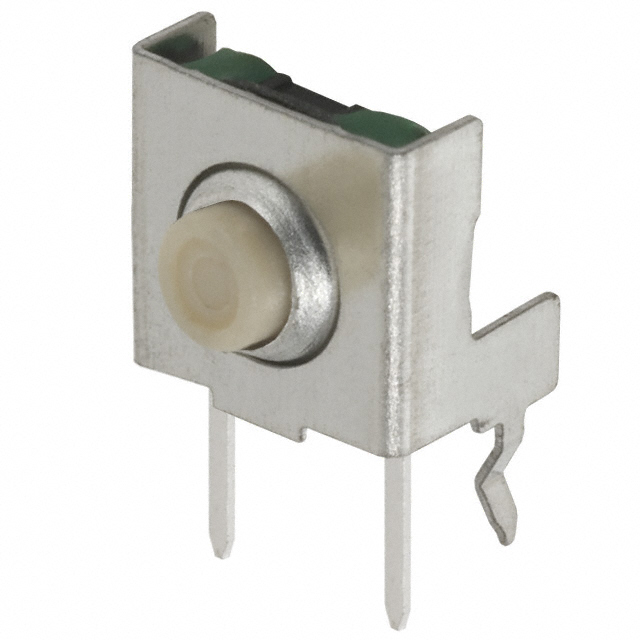

TL6110AF500QP

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 5N; 3.5MM

Search across all available documentation for this part.

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 5N; 3.5MM

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Switch Travel	Contact Rating @ Voltage	Outline [x]	Outline [y]	Actuator Length, Right Angle	Operating Force	Actuator Orientation	Switch Function	Actuator Material	Circuit	Illumination	Actuator Type	Mounting Type	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]
E-Switch TL6110DF300QP	PC Pin	0.5 mm	0.05 A 12 VDC	8.3 mm	5.8 mm	8.8 mm	300 gf	Side Actuated	Off-Mom	Nylon Polyamide (PA)	SPST-NO	Non-Illuminated	Standard	Through Hole Right Angle	500000 Cycles	85 °C	-40 °C
E-Switch TL6110CF300QP	PC Pin	0.5 mm	0.05 A 12 VDC	8.3 mm	5.8 mm	5.7 mm	300 gf	Side Actuated	Off-Mom	Nylon Polyamide (PA)	SPST-NO	Non-Illuminated	Standard	Through Hole Right Angle	500000 Cycles	85 °C	-40 °C
E-Switch TL6110CF160QP	PC Pin	0.5 mm	0.05 A 12 VDC	8.3 mm	5.8 mm	5.7 mm		Side Actuated	Off-Mom	Nylon Polyamide (PA)	SPST-NO	Non-Illuminated	Standard	Through Hole Right Angle	1000000 Cycles	85 °C	-40 °C
E-Switch TL6110AF500QP	PC Pin	0.5 mm	0.05 A 12 VDC	8.3 mm	5.8 mm	3.5 mm	0.5 kgf	Side Actuated	Off-Mom	Nylon Polyamide (PA)	SPST-NO	Non-Illuminated	Standard	Through Hole Right Angle	200000 Cycles	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5096	$ 0.65

General part information

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
