2200-6-1/2X4-1/2

Active

3M (TC)

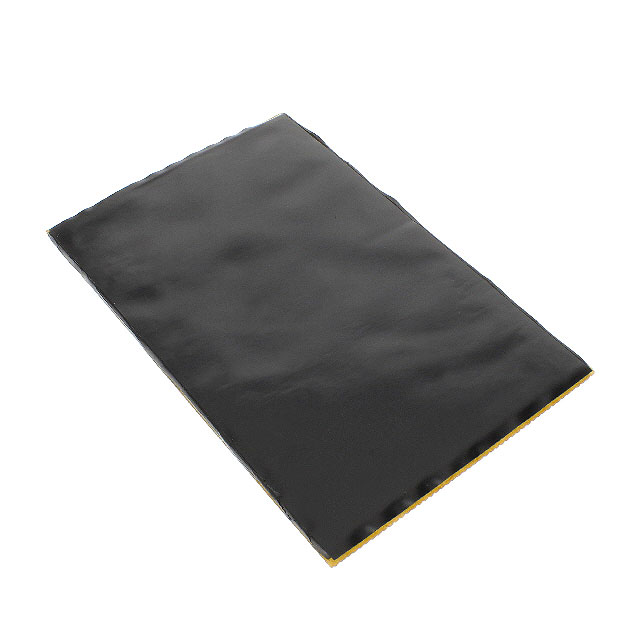

TAPE MASTIC PAD BK 4 1/2"X6 1/2"

Search across all available documentation for this part.

Active

3M (TC)

TAPE MASTIC PAD BK 4 1/2"X6 1/2"

Technical Specifications

Parameters and characteristics for this part

Specification	2200-6-1/2X4-1/2

Adhesive	Rubber, Self Fusing
Backing, Carrier	PVC (Poly Vinyl Chloride)
Color	Black
Length	6.5 "
Length	165.1 mm
Length
Tape Type	Mastic Pad
Temperature Range [Max]	100 °F
Temperature Range [Max]	38 °C
Temperature Range [Min]	-18 °C
Temperature Range [Min]	0 °F
Thickness	0.125 in
Thickness	3.175 mm
Thickness	125 mils
Thickness	0.125 "
Thickness - Adhesive	2.997 mm
Thickness - Adhesive	118 mils
Thickness - Adhesive	0.118 in
Thickness - Backing, Carrier	7 mils
Thickness - Backing, Carrier	0.178 mm
Thickness - Backing, Carrier	0.007 "
Usage	Insulating, Moisture Sealing
Width	4.5 "
Width	114.3 mm
Width

Part	Width	Width	Backing, Carrier	Usage	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Length	Length	Thickness	Thickness	Thickness	Thickness	Color	Tape Type	Shelf Life Start	Shelf Life	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length [x]	Length [x]	Width
3M (TC) 2200-2.5X4.5IN	63.5 mm	2.5 in	Vinyl	Insulating Sealing Splicing	18 °C	100 °F	38 °C	4.5 in	114.3 mm	0.125 in	3.175 mm	125 mils	0.125 "	Black	Mastic Pad	Date of Manufacture	60 Months	Self-Adhesive
3M (TC) 2200-2.5X8.5IN	63.5 mm	2.5 in	Vinyl	Insulating Sealing Splicing	18 °C	100 °F	38 °C	8.5 "	215.9 mm	0.125 in	3.175 mm	125 mils	0.125 "	Black	Mastic Pad	Date of Manufacture	60 Months	Self-Adhesive
3M (TC) 2200-6-1/2X4-1/2	114.3 mm	4.5 "	PVC (Poly Vinyl Chloride)	Insulating Moisture Sealing	-18 °C	100 °F	38 °C	6.5 "	165.1 mm	0.125 in	3.175 mm	125 mils	0.125 "	Black	Mastic Pad			Rubber Self Fusing	2.997 mm	118 mils	0.118 in	7 mils	0.178 mm	0.007 "
3M (TC) 2200-1.5X2.375IN	38.1 mm	1.5 "	Vinyl	Insulating Sealing Splicing	18 °C	100 °F	38 °C			0.125 in	3.175 mm	125 mils	0.125 "	Black	Mastic Pad	Date of Manufacture	60 Months	Self-Adhesive							60.45 mm	2.38 "	1 1/2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mastic Pad Tape Rubber, Self Fusing Adhesive Black 4.50" (114.30mm) 4 1/2" X 6.50" (165.10mm) 6 1/2"
