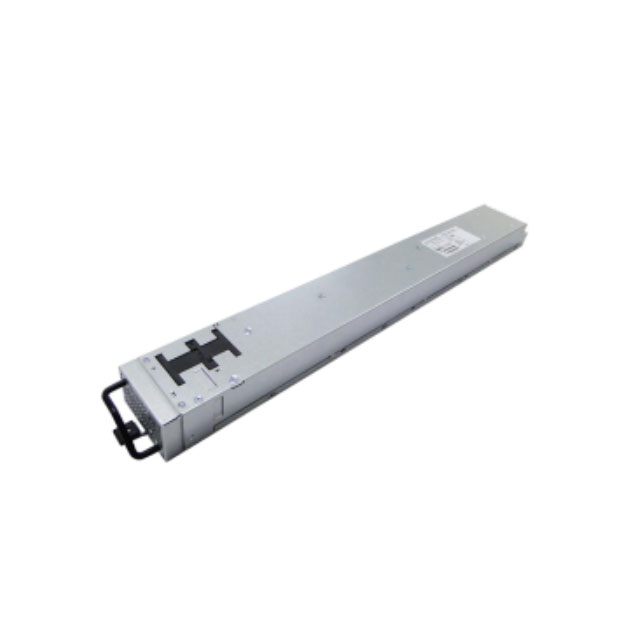

TET3200-12-069RA

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 12V 260A 3200W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 12V 260A 3200W

Technical Specifications

Parameters and characteristics for this part

Specification	TET3200-12-069RA

Applications	ITE (Commercial)
Approval Agency	UL, CSA, CE
Current - Output 1 [custom]	260 A
Efficiency	95.4 %
Features	Adjustable Output, Universal Input, I2C Interface, PFC
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	0 °C
Power (Watts)	3.12 kW
Size / Dimension [x]	576.9 mm
Size / Dimension [x]	22.71 "
Size / Dimension [y]	2.72 in
Size / Dimension [y]	69 mm
Size / Dimension [z]	40.5 mm
Size / Dimension [z]	1.59 "
Standard Number	60950-1, 62368-1
Type	Front End
Voltage - Input [Max]	300 VAC, 410 V
Voltage - Input [Min]	180 V, 90 VAC
Voltage - Output 1	12 V

Part	Mounting Type	Standard Number	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Approval Agency	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Power (Watts)	Current - Output 1 [custom]	Applications	Features
EOS Power India Private Ltd TET3200-12-069RA	Rack Mount	60950-1 62368-1	1	300 VAC 410 V	90 VAC 180 V	0 °C	45 °C	95.4 %	CE CSA UL	Front End	2.72 in	576.9 mm	40.5 mm	69 mm	22.71 "	1.59 "	12 V	3.12 kW	260 A	ITE (Commercial)	Adjustable Output I2C Interface PFC Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 962.50

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 300 VAC, 180 ~ 410 VDC Input
