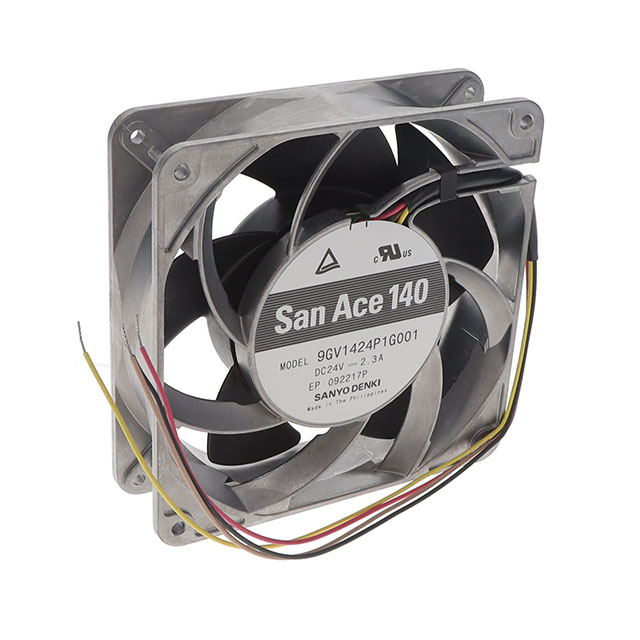

9GV1424P1G001
ActiveSanyo Denki America Inc.
FAN AXIAL 140X38MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9GV1424P1G001
ActiveSanyo Denki America Inc.
FAN AXIAL 140X38MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9GV1424P1G001 |
|---|---|
| Air Flow | 8.68 m³/min |
| Air Flow | 310 CFM |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 2.3 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), PWM Control |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 70 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 55.2 W |
| RPM | 7600 RPM |
| Size / Dimension [x] | 140 mm |
| Size / Dimension [z] | 140 mm |
| Static Pressure | 640.1 Pa |
| Static Pressure | 2.57 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 21.6 VDC |
| Weight | 635 g |
| Weight [custom] | 1.4 lbs |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 84.16 | |
| 14 | $ 76.14 | |||
| 28 | $ 71.14 | |||
| 56 | $ 70.13 | |||
| 112 | $ 64.62 | |||
Description
General part information
9GV1424 Series
Fan Tubeaxial 24VDC Square - 140mm L x 140mm H Ball 310.0 CFM (8.68mł/min) 4 Wire Leads
