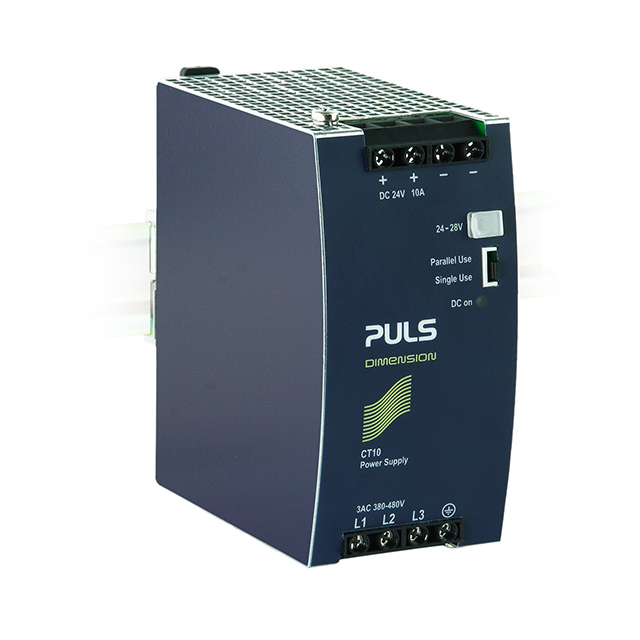

CT10.241-C1

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	CT10.241-C1

AC Voltage - Input [Max]	576 VAC
AC Voltage - Input [Min]	323 VAC
Applications	ITE (Commercial)
Approval Agency	UL, IEC, ABS, EAC, DNV GL
Current - Output (Max) [Max]	10 A
Features	Load Sharing, Adjustable Output, Conformal Coating
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	240 W
Size / Dimension [x]	4.61 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	62 mm
Size / Dimension [y]	2.44 "
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Standard Number	61010-2-201, 60950-1, 508
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	Voltage - Isolation	Power (Watts)	Standard Number	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Input Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Output 1	Number of Outputs	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]
PULS, LP CT10.481	500 V	240 W	508 60950-1 61010-2-201 Class I Div 2	4.61 "	62 mm	124 mm	4.88 "	117 mm	2.44 "	ITE (Commercial)	AC	ABS CSA DNV GL EAC IEC UL	-25 °C	70 °C	Adjustable Output Load Sharing	48 V	1	5 A	380 VAC	480 VAC
PULS, LP CT10.241-C1	500 V	240 W	508 60950-1 61010-2-201	4.61 "	62 mm	124 mm	4.88 "	117 mm	2.44 "	ITE (Commercial)	AC	ABS DNV GL EAC IEC UL	-25 °C	70 °C	Adjustable Output Conformal Coating Load Sharing	24 V	1	10 A	323 VAC	576 VAC
PULS, LP CT10.241	500 V	240 W	508 60950-1 61010-2-201 Class I Div 2 F47	4.61 "	62 mm	124 mm	4.88 "	117 mm	2.44 "	ITE (Commercial)	AC	ABS CSA DNV GL EAC IEC SEMI UL	0 °C	70 °C	Adjustable Output Load Sharing	24 V	1	10.8 A	323 VAC	576 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 472.50

General part information

AC/DC DIN RAIL SUPPLY 24V 240W
