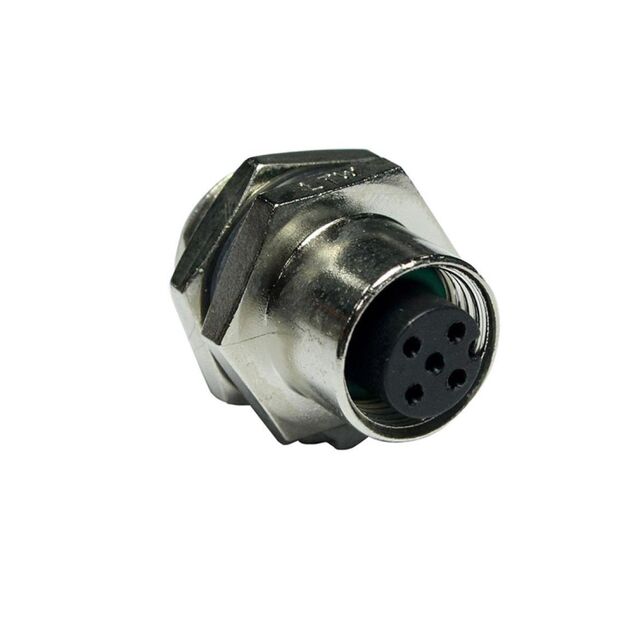

M12A-10PFFS-SH8C15
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 10 PINS, FEMALE CONNECTOR, FEMALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12A-10PFFS-SH8C15
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 10 PINS, FEMALE CONNECTOR, FEMALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-10PFFS-SH8C15 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-10 |
| Shielding | Shielded |
| Termination | Wire Leads |
| Voltage Rating | 30 VAC |
M12A-10PFFS Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Current Rating (Amps) | Voltage Rating | Termination | Ingress Protection | Shell Material | Connector Type | Shell Finish | Color | Mounting Feature | Contact Finish - Mating | Shell Size - Insert | Primary Material | Orientation | Insert Material | Shielding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | -25 °C | 85 °C | Copper Alloy | 1.5 A | 30 VAC | Wire Leads | IP68 IP69K | Zinc Alloy | Receptacle Female Sockets | Nickel | Silver | Bulkhead - Front Side Nut | Gold | M12-10 | Metal | A | Polyamide (PA) Nylon Glass Filled | Shielded | 10 |
Amphenol LTW | -40 °C | 105 ░C | Copper Alloy | 1.5 A | 30 VAC | IP68 IP69K | Zinc Alloy | Receptacle Female Sockets | Nickel | Silver | Bulkhead - Rear Side Nut | Gold | M12-10 | Metal | A | Polyamide (PA) Nylon Glass Filled | Shielded | 10 | |
Amphenol LTW | -25 °C | 85 °C | Copper Alloy | 1.5 A | 30 VAC | Wire Leads | IP68 IP69K | Zinc Alloy | Receptacle Female Sockets | Nickel | Silver | Bulkhead - Rear Side Nut | Gold | M12-10 | Metal | A | Polyamide (PA) Nylon Glass Filled | Shielded | 10 |
Amphenol LTW | -40 °C | 105 ░C | Copper Alloy | 1.5 A | 30 VAC | IP68 IP69K | Zinc Alloy | Receptacle Female Sockets | Nickel | Silver | Bulkhead - Front Side Nut | Gold | M12-10 | Metal | A | Polyamide (PA) Nylon Glass Filled | Shielded | 10 | |
Amphenol LTW | -25 °C | 85 °C | Copper Alloy | 1.5 A | 30 VAC | Wire Leads | IP68 IP69K | Zinc Alloy | Receptacle Female Sockets | Nickel | Silver | Bulkhead - Rear Side Nut | Gold | M12-10 | Metal | A | Polyamide (PA) Nylon Glass Filled | Shielded | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M12A-10PFFS Series
10 Position Circular Connector Receptacle, Female Sockets Wire Leads
