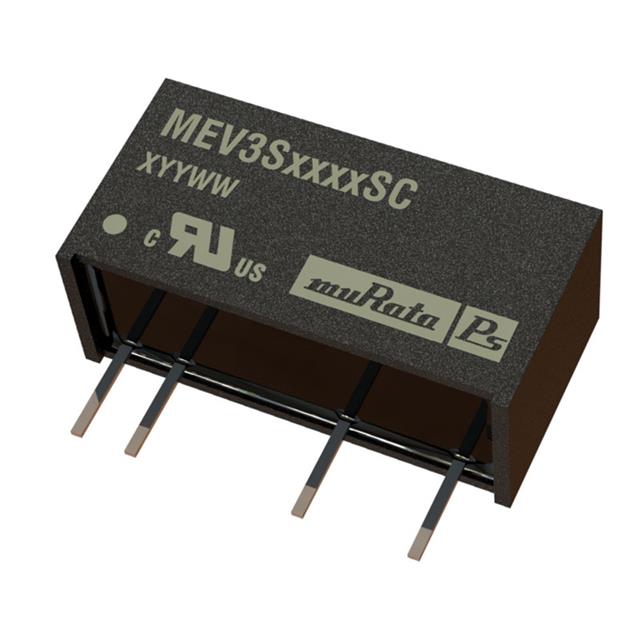

MEV3S1212SC - MEV3S1205SC

MEV3S1212SC

Active
Murata Power Solutions Inc.

DC-DC REGULATED POWER SUPPLY MODULE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
MEV3S1212SC - MEV3S1205SC

MEV3S1212SC

Active
Murata Power Solutions Inc.

DC-DC REGULATED POWER SUPPLY MODULE,

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMEV3S1212SC
ApplicationsITE (Commercial)
Current - Output (Max) [Max]250 mA
Efficiency88 %
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Package / Case7-SIP Module, 4 Leads
Power (Watts)3 W
Size / Dimension [x]19.6 mm
Size / Dimension [x]0.77 in
Size / Dimension [y]0.3 "
Size / Dimension [y]7.6 mm
Size / Dimension [z]10.2 mm
Size / Dimension [z]0.4 "
TypeIsolated Module
Voltage - Input (Max) [Max]13.2 V
Voltage - Input (Min) [Min]10.8 V
Voltage - Isolation3000 V
Voltage - Output 112 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 11.46
5$ 11.40
10$ 11.32
25$ 11.20
50$ 10.92
100$ 10.37
250$ 9.71
500$ 9.05
1000$ 8.48
NewarkEach 25$ 12.36
50$ 12.06
100$ 11.49

Description

General part information

MEV3S12 Series

Isolated Module DC DC Converter 1 Output 12V 250mA 10.8V - 13.2V Input
