SN74GTLPH3245ZKFR
ObsoleteTexas Instruments
IC TRANSLTR BIDIRECTIONAL 114BGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SN74GTLPH3245ZKFR
ObsoleteTexas Instruments
IC TRANSLTR BIDIRECTIONAL 114BGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SN74GTLPH3245ZKFR |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 8 |
| Input Signal | LVTTL |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Signal | GTLP |
| Output Type | Tri-State, Non-Inverted |

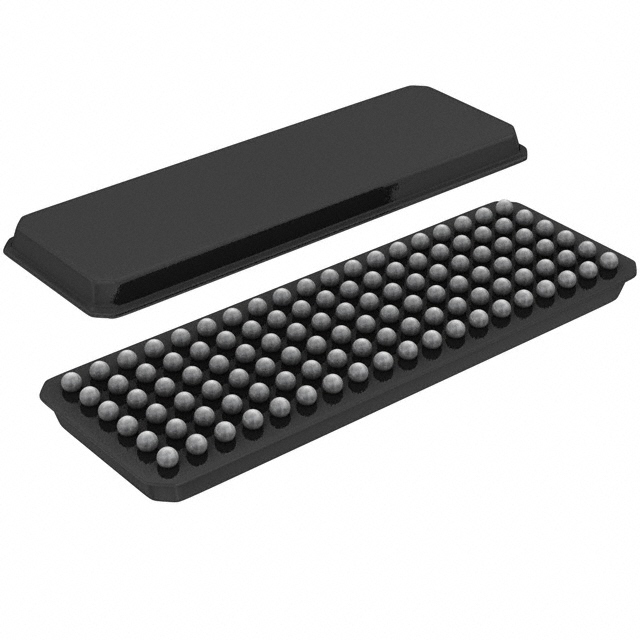

| Package / Case | 114-LFBGA |
| Supplier Device Package | 114-BGA MICROSTAR |
| Supplier Device Package [x] | 16 |
| Supplier Device Package [y] | 5.5 |
| Translator Type | Mixed Signal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
74GTLPH3245 Series
Mixed Signal Translator Bidirectional 4 Circuit 8 Channel 114-BGA MICROSTAR (16x5.5)
