11133000301

Active

HARTING Technology Group

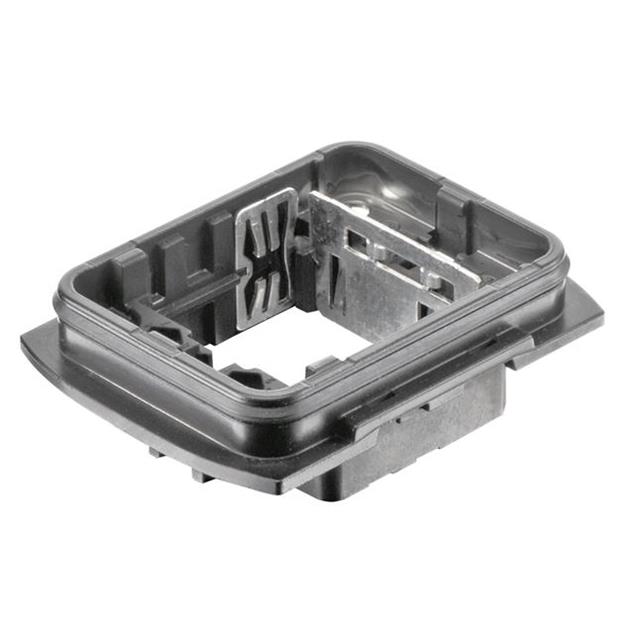

HAN-YELLOCK 30M BULKHEAD HOUSING - OUTDOOR VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-YELLOCK 30M BULKHEAD HOUSING - OUTDOOR VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	11133000301

Connector Type	Base - Panel Mount
Housing Color	Black
Housing Finish	Zinc Passivation
Housing Material	Zinc, Die Cast
Ingress Protection	IP67, IP65
Lock Location	Push Button Snap Lock on Hood Carrier
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	74.6 mm
Size / Dimension [x]	2.937 in
Size / Dimension [y]	2.205 in
Size / Dimension [y]	56 mm
Size / Dimension [z]	0.921 "
Size / Dimension [z]	23.4 mm
Style	Bottom Entry

Part	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Style	Ingress Protection	Connector Type	Housing Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Housing Finish	Lock Location
HARTING Technology Group 11133000301	Black	125 °C	-40 °C	Bottom Entry	IP65 IP67	Base - Panel Mount	Zinc Die Cast	74.6 mm	2.205 in	56 mm	2.937 in	0.921 "	23.4 mm	Zinc Passivation	Push Button Snap Lock on Hood Carrier

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry IP65/IP67 - Dust Tight, Water Resistant, Waterproof
