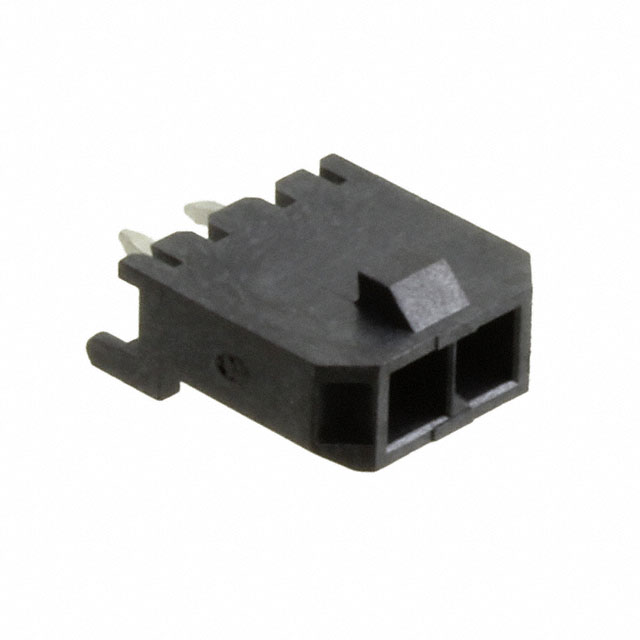

G881B02102KEU
ActiveAmphenol ICC (Commercial Products)
CONN HEADER VERT 2POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G881B02102KEU
ActiveAmphenol ICC (Commercial Products)
CONN HEADER VERT 2POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G881B02102KEU |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height [z] | 9.91 mm |
| Insulation Height [z] | 0.39 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 7380 | $ 0.31 | |
Description
General part information
G881B Series
Connector Header Through Hole 2 position 0.118" (3.00mm)
