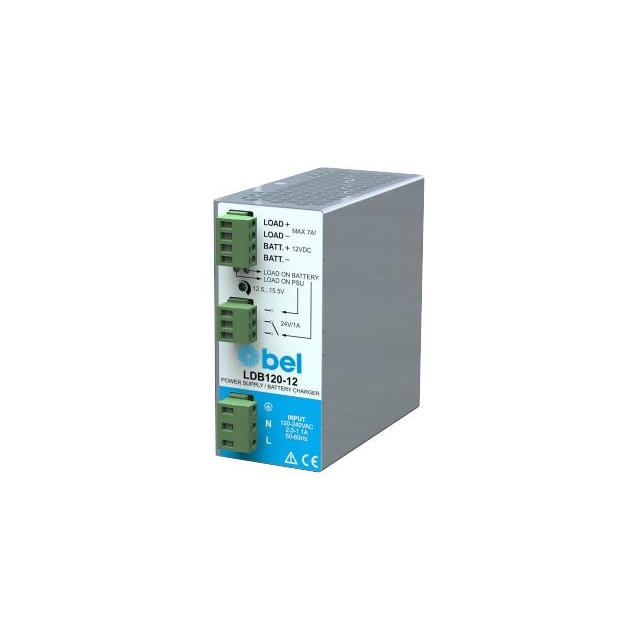

LDB120-12

Active

EOS Power India Private Ltd

POWER SUPPLYLDB120-12AC-DC/DC-DC

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

POWER SUPPLYLDB120-12AC-DC/DC-DC

Technical Specifications

Parameters and characteristics for this part

Specification	LDB120-12

Applications	Industrial Control, General Purpose
Form	Din Rail
Height [z]	115.01 mm
Height [z]	4.528 in
Input Connector	Screw Terminals
Power - Rated	120 W
Size / Dimension [x]	2.126 in
Size / Dimension [x]	54 mm
Size / Dimension [y]	110 mm
Size / Dimension [y]	4.331 in
Voltage - Output	12 V

Part	Input Connector	Voltage - Output	Power - Rated	Form	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Height [z]	Height [z]
EOS Power India Private Ltd LDB120-24	Screw Terminals	24 V	120 W	Din Rail	110 mm	2.126 in	4.331 in	54 mm	General Purpose Industrial Control	115.01 mm	4.528 in
EOS Power India Private Ltd LDB120-12	Screw Terminals	12 V	120 W	Din Rail	110 mm	2.126 in	4.331 in	54 mm	General Purpose Industrial Control	115.01 mm	4.528 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

POWER SUPPLYLDB120-12AC-DC/DC-DC

Technical documentation and resources

No documents available
