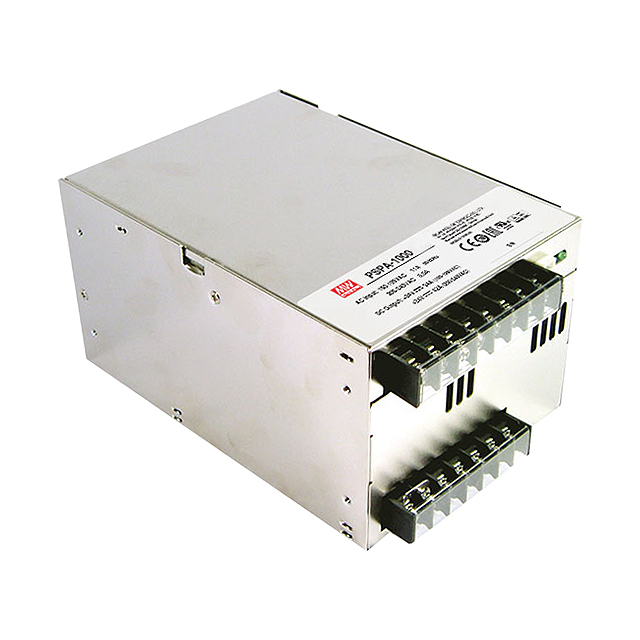

PSPA-1000-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 960W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 960W

Technical Specifications

Parameters and characteristics for this part

Specification	PSPA-1000-12

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, EAC, CE, CB
Efficiency	92 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, Load Sharing, PFC
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	960 W
Size / Dimension [x]	6.69 "
Size / Dimension [x]	170 mm
Size / Dimension [y]	4.72 "
Size / Dimension [y]	120 mm
Size / Dimension [z]	3.66 in
Size / Dimension [z]	93 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Approval Agency	Mounting Type	Number of Outputs	Applications	Voltage - Isolation	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]
MEAN WELL USA Inc. PSPA-1000-12	CB CE cURus EAC TUV	Chassis Mount	1	ITE (Commercial)	3000 V	960 W	4.72 "	6.69 "	120 mm	3.66 in	93 mm	170 mm	92 %	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	-20 °C	70 °C	Enclosed	12 V	90 VAC 127 VDC	264 VAC 370 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
