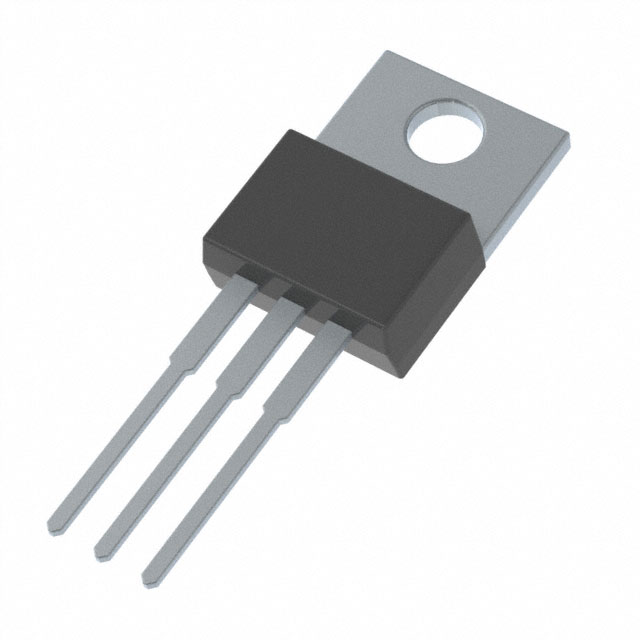

TIP42A-BP

Active

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

Active

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	TIP42A-BP

DC Current Gain (hFE) (Min) @ Ic, Vce	30 hFE
Frequency - Transition	3 MHz
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	TO-220-3
Power - Max [Max]	2 W
Supplier Device Package	TO-220AB
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	1.5 V
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Mounting Type	Supplier Device Package	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Operating Temperature	Transistor Type	Package / Case	Voltage - Collector Emitter Breakdown (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce	Operating Temperature [Max]	Operating Temperature [Min]
Micro Commercial Components TIP42C-BP	Through Hole	TO-220AB	3 MHz	15	100 V	1.5 V	2 W	150 °C	PNP	TO-220-3
Micro Commercial Components TIP42A-BP	Through Hole	TO-220AB	3 MHz			1.5 V	2 W		PNP	TO-220-3	60 V	30 hFE	150 °C	-65 °C
Micro Commercial Components TIP42-BP	Through Hole	TO-220AB	3 MHz		40 V	1.5 V	2 W	150 °C	PNP	TO-220-3		30 hFE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.29

General part information

Bipolar (BJT) Transistor PNP 60 V 6 A 3MHz 2 W Through Hole TO-220AB
