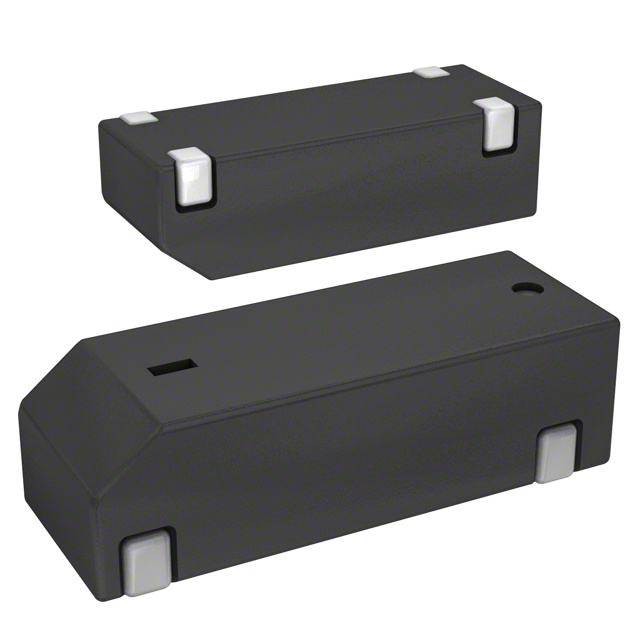

FPXLF120-20
ObsoleteFox Electronics
CRYSTAL 12.0000MHZ 20PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FPXLF120-20
ObsoleteFox Electronics
CRYSTAL 12.0000MHZ 20PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FPXLF120-20 |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 12 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) [Max] | 0.146 in |
| Height - Seated (Max) [Max] | 3.7 mm |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.492 in |
| Size / Dimension [x] | 12.5 mm |
| Size / Dimension [y] | 4.6 mm |
| Size / Dimension [y] | 0.181 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FPXLF120-20
12 MHz ±50ppm Crystal 20pF 60 Ohms 4-SMD, No Lead
