0300-02-056-095-0-0-990
ActiveMurrplastik Systems, Inc.

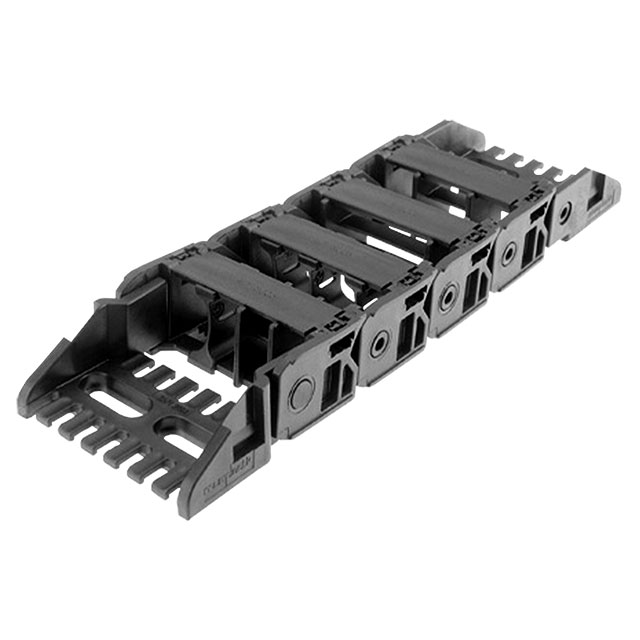

MP3000 CABLE CARRIER 26HX56WX990
Deep-Dive with AI
Search across all available documentation for this part.
0300-02-056-095-0-0-990
ActiveMurrplastik Systems, Inc.
MP3000 CABLE CARRIER 26HX56WX990
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0300-02-056-095-0-0-990 |
|---|---|
| Cavity Height [z] | 1.024 in |
| Cavity Height [z] | 26 mm |
| Cavity Width [x] | 2.205 " |
| Cavity Width [x] | 56 mm |
| Frame Type | Open |
| Length | 990 mm |
| Length | 38.976 in |
| Link Pitch | 45 mm |
| Link Pitch | 1.772 in |
| Loading Side | Inside Bend |
| Material | Polyamide (PA) |
| Minimum Bend Radius [radius] | 95 mm |
| Minimum Bend Radius [radius] | 3.74 in |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -30 ░C |
| Outer Height | 1.378 in |
| Outer Height | 35 mm |
| Outer Width [x] | 74 mm |
| Outer Width [x] | 2.913 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 90.84 | |
Description
General part information
0300-02 Series
MP3000 CABLE CARRIER 26HX56WX990
Documents
Technical documentation and resources
No documents available
