5PB1213NTGK8
ActiveRenesas Electronics Corporation
CLOCK BUFFER, -40 TO 105DEG C ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
5PB1213NTGK8
ActiveRenesas Electronics Corporation
CLOCK BUFFER, -40 TO 105DEG C ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5PB1213NTGK8 |
|---|---|
| Differential - Input:Output | False |
| Frequency - Max [Max] | 200 MHz |
| Input | LVCMOS |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVCMOS |

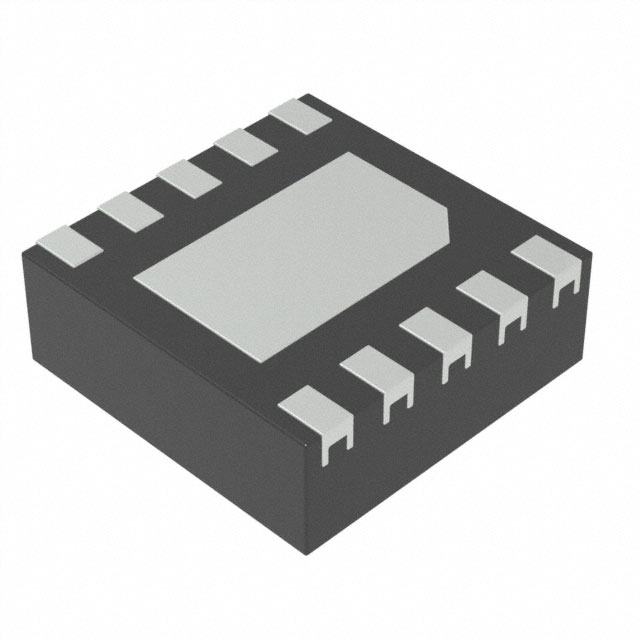

| Package / Case | 10-WFDFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:3 |
| Supplier Device Package | 10-DFN (2x2) |
| Type | Clock Buffer |
| Voltage - Supply [Max] | 3.465 V, 2.625 V, 1.89 V |
| Voltage - Supply [Min] | 2.375 V, 1.71 V, 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.97 | |
| 10 | $ 1.77 | |||
| 25 | $ 1.67 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.17 | |||
| 1000 | $ 0.97 | |||
| Digi-Reel® | 1 | $ 1.97 | ||
| 10 | $ 1.77 | |||
| 25 | $ 1.67 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.17 | |||
| 1000 | $ 0.97 | |||
| Tape & Reel (TR) | 3000 | $ 0.90 | ||
| 6000 | $ 0.87 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.24 | |
| 10 | $ 1.20 | |||
| 25 | $ 1.12 | |||
| 50 | $ 1.05 | |||
| 100 | $ 0.97 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.86 | |||
Description
General part information
5PB1213 Series
Clock Clock Buffer IC 1:3 200 MHz 10-WFDFN Exposed Pad
