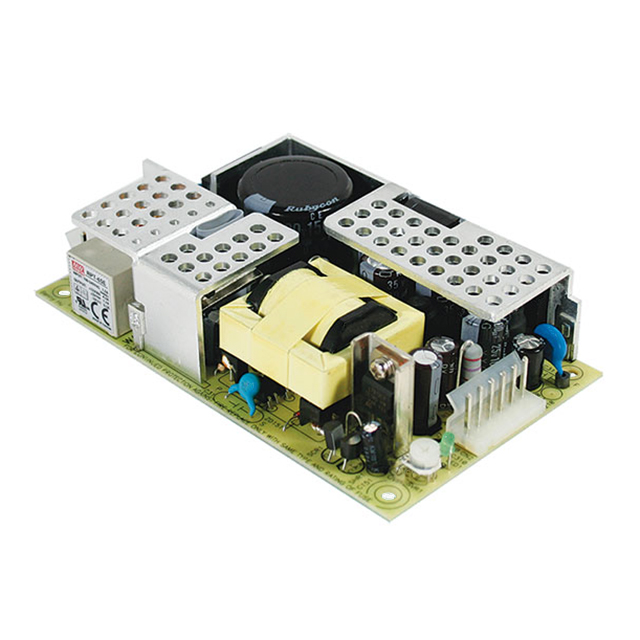

RPT-65F

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 5V -12V 66W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 5V -12V 66W

Technical Specifications

Parameters and characteristics for this part

Specification	RPT-65F

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	4.5 A
Current - Output 2	1.2 A
Current - Output 3	500 mA
Efficiency	77 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	66 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	2.99 in
Size / Dimension [y]	76 mm
Size / Dimension [z]	1.14 "
Size / Dimension [z]	29 mm
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V
Voltage - Output 2	5 V
Voltage - Output 3	-12 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Mounting Type	Type	Voltage - Output 2	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 2	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 3	Current - Output 3	Features	Approval Agency	Current - Output 1	Efficiency	Applications	Voltage - Isolation	Power (Watts)
MEAN WELL USA Inc. RPT-65G	60 °C	-20 °C	3	Chassis Mount	Open Frame	5 V	24 V	90 VAC 127 VDC	264 VAC 370 VDC	1.2 A	2.99 in	1.14 "	76 mm	127 mm	29 mm	5 in	12 V	500 mA	Adjustable Output Universal Input	CB CE cURus TUV	2.25 A	81 %	ITE (Commercial)	3000 V	66 W
MEAN WELL USA Inc. RPT-65F	60 °C	-20 °C	3	Chassis Mount	Open Frame	5 V	12 V	90 VAC 127 VDC	264 VAC 370 VDC	1.2 A	2.99 in	1.14 "	76 mm	127 mm	29 mm	5 in	-12 V	500 mA	Adjustable Output Universal Input	CB CE cURus TUV	4.5 A	77 %	ITE (Commercial)	3000 V	66 W
MEAN WELL USA Inc. RPT-65E	60 °C	-20 °C	3	Chassis Mount	Open Frame	5 V	12 V	90 VAC 127 VDC	264 VAC 370 VDC	1.2 A	2.99 in	1.14 "	76 mm	127 mm	29 mm	5 in	-5 V	500 mA	Adjustable Output Universal Input	CB CE cURus TUV	4.5 A	77 %	ITE (Commercial)	3000 V	63 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 3 Output 12V 5V -12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
