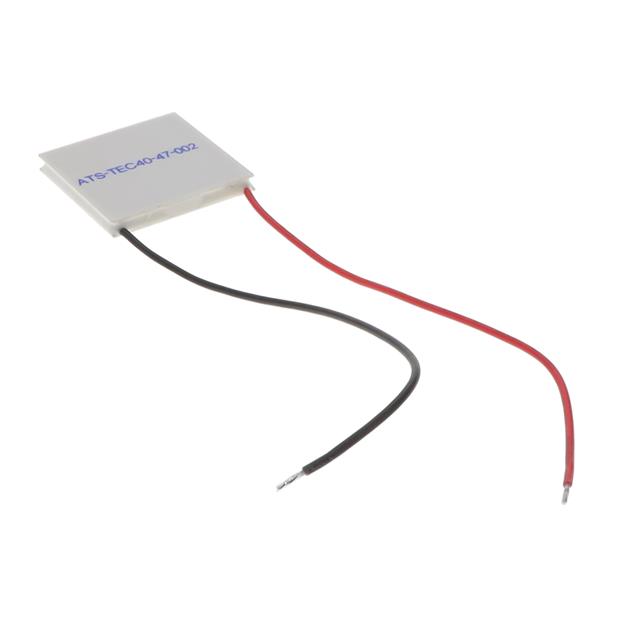

ATS-TEC40-47-002

Active

Advanced Thermal Solutions Inc.

THERMOELECTRIC PELTIER MODULES THERMOELECTRIC MODULE, 40X40X4.7MM LXWXH, 4A, 15.4VMAX, 36.8W QMAX, 100MM WIRE

Search across all available documentation for this part.

Active

Advanced Thermal Solutions Inc.

THERMOELECTRIC PELTIER MODULES THERMOELECTRIC MODULE, 40X40X4.7MM LXWXH, 4A, 15.4VMAX, 36.8W QMAX, 100MM WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-TEC40-47-002

Current - Max [Max]	4 A
Delta Tmax @ Th	68 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	4.7 mm
Number of Stages	1
Qmax @ Th	36.8 W
Resistance	3.02 Ohms
Size / Dimension [x]	40 mm
Size / Dimension [y]	40 mm
Voltage - Max [Max]	15.4 V

Thermoelectric Peltier Modules Thermoelectric Module, 40x40x4.2mm LxWxH, 3A, 24.1Vmax, 41.6W Qmax, 100mm Wire

Part	Number of Stages	Features	Voltage - Max [Max]	Height [z]	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Resistance	Current - Max [Max]	Delta Tmax @ Th	Size / Dimension
Advanced Thermal Solutions Inc. ATS-TEC30-36-017	1	Lead Wires Sealed - Silicone RTV	15.4 V	3.6 mm	26.7 W	30 mm	30 mm	3.42 Ohms	3 A	68 °C
Advanced Thermal Solutions Inc. ATS-TEC10-47-012	1	Lead Wires Sealed - Silicone RTV	0.8 V	4.7 mm	2 W	10 mm	10 mm	160 mOhms	4 A	68 °C
Advanced Thermal Solutions Inc. ATS-TEC40-35-018	1	Lead Wires Sealed - Silicone RTV	24.1 V	3.5 mm	111.5 W	40 mm	40 mm	2.35 Ohms	8 A	68 °C
Advanced Thermal Solutions Inc. ATS-TEC30-33-020	1	Lead Wires Sealed - Silicone RTV	15.4 V	3.5 mm	35.6 W	30 mm	30 mm	3.08 Ohms	4 A	68 °C
Advanced Thermal Solutions Inc. ATS-TEC40-47-002	1	Lead Wires Sealed - Silicone RTV	15.4 V	4.7 mm	36.8 W	40 mm	40 mm	3.02 Ohms	4 A	68 °C
Advanced Thermal Solutions Inc. ATS-TEC30-47-013	1	Lead Wires Sealed - Silicone RTV	8.5 V	4.7 mm	21 W	30 mm	30 mm	1.73 Ohms	4 A	68 °C
Advanced Thermal Solutions Inc. ATS-TEC40-40-003	1	Lead Wires Sealed - Silicone RTV	15.4 V	4 mm		40 mm	40 mm	2.51 Ohms	5 A	68 °C
Advanced Thermal Solutions Inc. ATS-TEC50-38-016	1	Lead Wires Sealed - Silicone RTV	29.4 V	3.8 mm	118.5 W	50 mm	50 mm	3.36 Ohms	7 A	68 °C
Advanced Thermal Solutions Inc. ATS-TEC40-33-006	1	Lead Wires Sealed - Silicone RTV	15.4 V	3.3 mm	88.9 W	40 mm	40 mm			68 °C
Advanced Thermal Solutions Inc. ATS-TEC23-36-014	1	Lead Wires Sealed - Silicone RTV	8.5 V	3.6 mm	14.9 W	23 mm	23 mm	2.05 Ohms	3 A	68 °C	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermoelectric Peltier Modules Thermoelectric Module, 40x40x4.2mm LxWxH, 3A, 24.1Vmax, 41.6W Qmax, 100mm Wire
