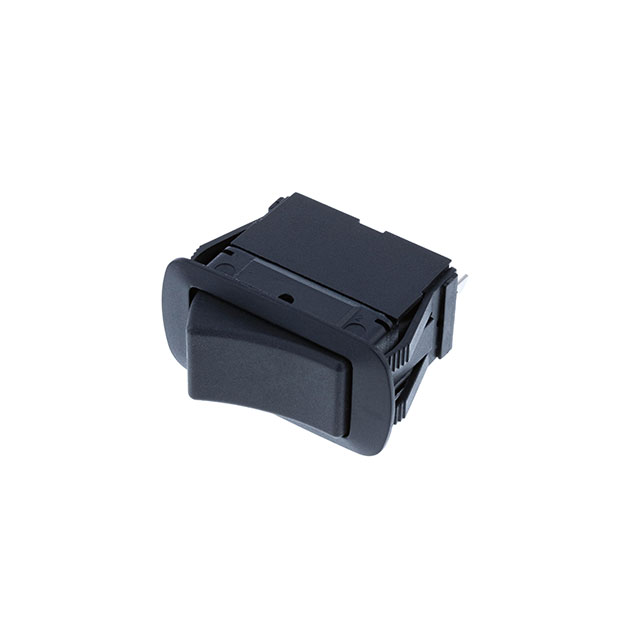

SRB1-1D-AC-1-NN

Active

Switch Components

VAC SEALED IP56, SPDT ON-ON

Search across all available documentation for this part.

Active

Switch Components

VAC SEALED IP56, SPDT ON-ON

Technical Specifications

Parameters and characteristics for this part

Specification	SRB1-1D-AC-1-NN

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	CSA, cURus, ENEC
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.6 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Current Rating (Amps)	Actuator Marking	Circuit	Color - Actuator/Cap	Termination Style	Actuator Type	Mounting Type	Voltage Rating - AC
Switch Components SRB1-1D-AC-1-NN	CSA cURus ENEC	21.2 mm	36.6 mm	IP56 - Dust Protected Water Resistant	85 °C	-20 C	On-On	16 A	No Marking	SPDT	Black	Quick Connect - 0.250" (6.3mm)	Concave (Curved)	Panel Mount Snap-In	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPDT 16A (AC) 125 V Panel Mount, Snap-In
