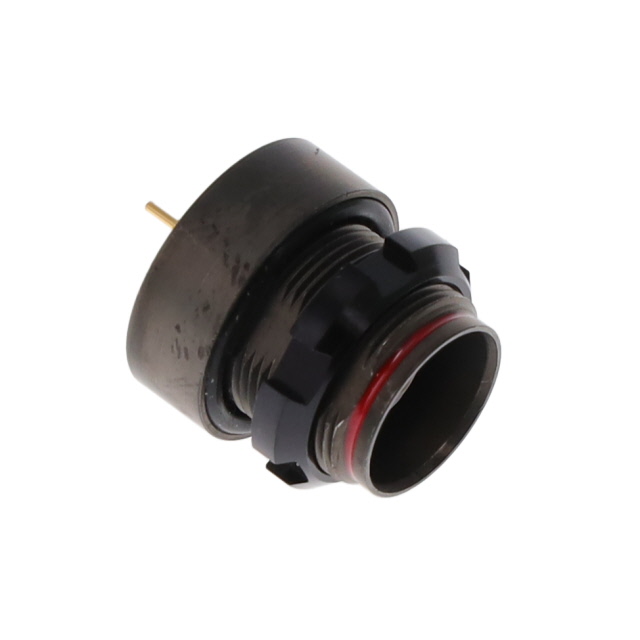

HDX-WGKM0-09UMBL
ActiveITT Cannon, LLC
PUSH-PULL PCB RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDX-WGKM0-09UMBL
ActiveITT Cannon, LLC
PUSH-PULL PCB RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDX-WGKM0-09UMBL |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A, 1 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IPX8/IPX9K - Water Resistant, Waterproof |
| Insert Material | Polyetherimide (PEI), Glass Filled |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -51 °C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Ruthenium over Electroless Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0-09 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
HDX-WGKM0 Series
| Part | Termination | Voltage Rating | Number of Positions | Shielding | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Shell Finish | Fastening Type | Contact Finish - Mating | Orientation | Contact Material | Connector Type | Shell Material | Insert Material | Primary Material | Color | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Current Rating (Amps) | Mounting Feature | Number of Positions | Shell Size - Insert | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Solder | 250 VDC | 12 | Unshielded | Panel Mount Through Hole | -51 °C | 125 °C | IPX8/IPX9K - Water Resistant Waterproof | Ruthenium over Electroless Nickel | Push-Pull | Gold | C | Copper Alloy | Receptacle Female Sockets | Brass | Polyetherimide (PEI) Glass Filled | Metal | Silver | 0 | 12 | 1 A 5 A | Bulkhead - Front Side Nut | ||||
ITT Cannon, LLC | 250 VDC | Unshielded | -51 °C | 125 °C | IPX8/IPX9K - Water Resistant Waterproof | Ruthenium over Electroless Nickel | Push-Pull | Gold | B | Copper Alloy | Receptacle Female Sockets | Brass | Polyetherimide (PEI) Glass Filled | Metal | Silver | 0 | 16 | 1 A 5 A | Bulkhead - Front Side Nut | 16 | ||||||
ITT Cannon, LLC | 250 VDC | Unshielded | -51 °C | 125 °C | IPX8/IPX9K - Water Resistant Waterproof | Ruthenium over Electroless Nickel | Push-Pull | Gold | A | Copper Alloy | Receptacle Female Sockets | Brass | Polyetherimide (PEI) Glass Filled | Metal | Silver | 1 A 5 A | Bulkhead - Front Side Nut | 0-09 | 3 | 6 | ||||||
ITT Cannon, LLC | 250 VDC | Unshielded | -51 °C | 125 °C | IPX8/IPX9K - Water Resistant Waterproof | Ruthenium over Electroless Nickel | Push-Pull | Gold | A | Copper Alloy | Receptacle Female Sockets | Brass | Polyetherimide (PEI) Glass Filled | Metal | Silver | 0 | 16 | 1 A 5 A | Bulkhead - Front Side Nut | 16 | ||||||
ITT Cannon, LLC | 250 VDC | 12 | Unshielded | -51 °C | 125 °C | IPX8/IPX9K - Water Resistant Waterproof | Ruthenium over Electroless Nickel | Push-Pull | Gold | B | Copper Alloy | Receptacle Female Sockets | Brass | Polyetherimide (PEI) Glass Filled | Metal | Silver | 0 | 12 | 1 A 5 A | Bulkhead - Front Side Nut | ||||||
ITT Cannon, LLC | Solder | 250 VDC | 12 | Unshielded | Panel Mount Through Hole | -51 °C | 125 °C | IPX8/IPX9K - Water Resistant Waterproof | Ruthenium over Electroless Nickel | Push-Pull | Gold | B | Copper Alloy | Receptacle Female Sockets | Brass | Polyetherimide (PEI) Glass Filled | Metal | Silver | 0 | 12 | 1 A 5 A | Bulkhead - Front Side Nut | ||||
ITT Cannon, LLC | 250 VDC | Unshielded | -51 °C | 125 °C | IPX8/IPX9K - Water Resistant Waterproof | Ruthenium over Electroless Nickel | Push-Pull | Gold | B | Copper Alloy | Receptacle Female Sockets | Brass | Polyetherimide (PEI) Glass Filled | Metal | Silver | 1 A 5 A | Bulkhead - Front Side Nut | 0-09 | 3 | 6 | ||||||
ITT Cannon, LLC | Solder | 250 VDC | Unshielded | Panel Mount Through Hole | -51 °C | 125 °C | IPX8/IPX9K - Water Resistant Waterproof | Ruthenium over Electroless Nickel | Push-Pull | Gold | B | Copper Alloy | Receptacle Female Sockets | Brass | Polyetherimide (PEI) Glass Filled | Metal | Silver | 1 A 5 A | Bulkhead - Front Side Nut | 0-09 | 3 | 6 | ||||
ITT Cannon, LLC | 250 VDC | 12 | Unshielded | -51 °C | 125 °C | IPX8/IPX9K - Water Resistant Waterproof | Ruthenium over Electroless Nickel | Push-Pull | Gold | C | Copper Alloy | Receptacle Female Sockets | Brass | Polyetherimide (PEI) Glass Filled | Metal | Silver | 0 | 12 | 1 A 5 A | Bulkhead - Front Side Nut | ||||||
ITT Cannon, LLC | Solder | 250 VDC | 12 | Unshielded | Panel Mount Through Hole | -51 °C | 125 °C | IPX8/IPX9K - Water Resistant Waterproof | Ruthenium over Electroless Nickel | Push-Pull | Gold | A | Copper Alloy | Receptacle Female Sockets | Brass | Polyetherimide (PEI) Glass Filled | Metal | Silver | 0 | 12 | 1 A 5 A | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 105.09 | |
| 10 | $ 91.81 | |||
Description
General part information
HDX-WGKM0 Series
9 (6 + 3 Power) Position Circular Connector Receptacle, Female Sockets Solder
