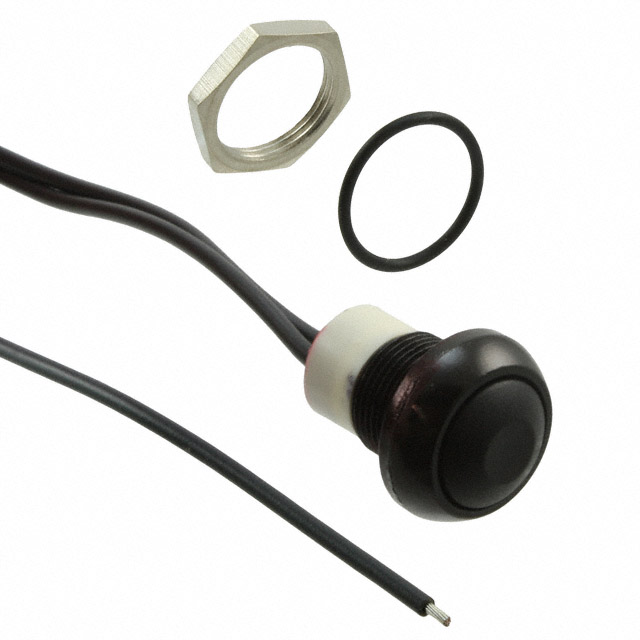

ICR3FAD2

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ICR3FAD2

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Electrical Life	500000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - AC	48 V
Voltage Rating - DC	28 V

Part	Electrical Life	Switch Function	Panel Cutout Dimensions [diameter]	Mechanical Life	Ingress Protection	Mounting Type	Voltage Rating - DC	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Features	Voltage Rating - AC	Type	Actuator Marking	Termination Style
APEM ICR3FAD2	500000 Cycles	Off-Mom	13.6 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	Panel Mount Front	28 V	Button Round	SPST-NO	85 °C	-40 °C	Black	Epoxy Sealed Terminals	48 V	Standard	No Marking	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
