0152681030

Active

Molex

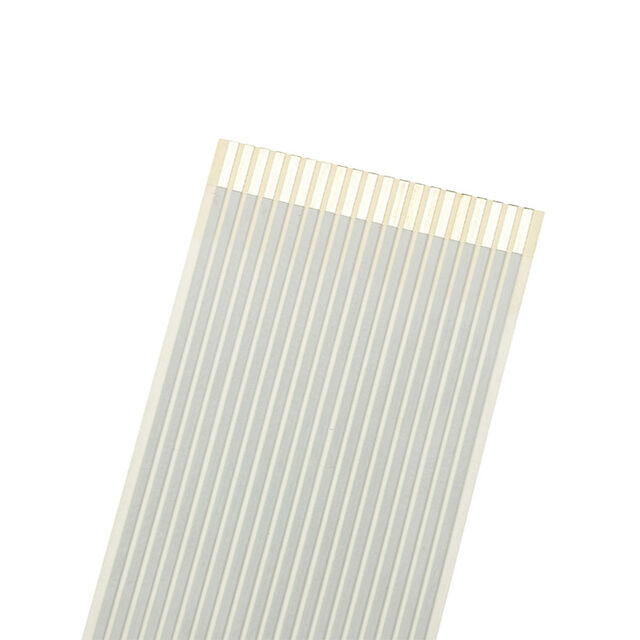

CABLE FFC 33POS 1.25MM 1.18"

Search across all available documentation for this part.

Active

Molex

CABLE FFC 33POS 1.25MM 1.18"

Technical Specifications

Parameters and characteristics for this part

Specification	0152681030

Cable Type	FPC, FFC
Length	29.97 mm
Length	1.18 in
Length - Exposed Ends [x]	0.197 in
Length - Exposed Ends [x]	5 mm
Number of Conductors	33
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Termination Style	Top on One Side, Bottom on Other, Backers on Both Sides

...

Part	Termination Style	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Cable Type	Number of Conductors	Length	Length [x]	Length
Molex 0152680229	Backers on Both Sides Top on Both Sides	0.049 in	1.25 mm	0.197 in	5 mm	FFC FPC	16	254 mm	10 in
Molex 0152680961	Backers on Both Sides Top on Both Sides	0.049 in	1.25 mm	0.197 in	5 mm	FFC FPC	25	254 mm	10 in
Molex 0152680316	Top on One Side Bottom on Other Backers on Both Sides	0.049 in	1.25 mm	0.197 in	5 mm	FFC FPC	24	228.6 mm		9 "
Molex 0152681074	Top on One Side Bottom on Other Backers on Both Sides	0.049 in	1.25 mm	0.197 in	5 mm	FFC FPC	37	29.97 mm		1.18 in
Molex 0152680936	Top on One Side Bottom on Other Backers on Both Sides	0.049 in	1.25 mm	0.197 in	5 mm	FFC FPC	23	228.6 mm		9 "
Molex 0152681007	Backers on Both Sides Top on Both Sides	0.049 in	1.25 mm	0.197 in	5 mm	FFC FPC	29	304.8 mm	12 in
Molex 0152681004	Top on One Side Bottom on Other Backers on Both Sides	0.049 in	1.25 mm	0.197 in	5 mm	FFC FPC	29	254 mm	10 in
Molex 0152681030	Top on One Side Bottom on Other Backers on Both Sides	0.049 in	1.25 mm	0.197 in	5 mm	FFC FPC	33	29.97 mm		1.18 in
Molex 0152680808	Top on One Side Bottom on Other Backers on Both Sides	0.049 in	1.25 mm	0.197 in	5 mm	FFC FPC	11	304.8 mm	12 in
Molex 0152680283	Backers on Both Sides Top on Both Sides	0.049 in	1.25 mm	0.197 in	5 mm	FFC FPC	22	101.6 mm		4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.92

General part information

33 Position FFC, FPC Cable 0.049" (1.25mm) 1.180" (29.97mm)
