T0054470899N

Active

Apex Tool Group

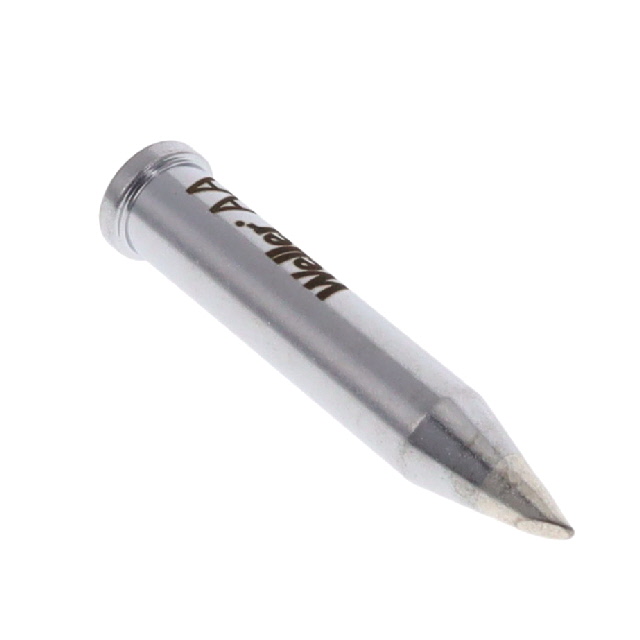

XT AA 60 SOLDERING TIP 1 6MM

Search across all available documentation for this part.

Active

Apex Tool Group

XT AA 60 SOLDERING TIP 1 6MM

Technical Specifications

Parameters and characteristics for this part

Specification	T0054470899N

For Use With/Related Products	Weller® WP120, WXP120
Length	1.437 in
Length	36.5 mm
Tip Shape	Round 60°
Tip Type	Soldering

Part	Tip Type	Length	Length	Tip Shape	For Use With/Related Products	Width [y]	Width [y]	Height [z]	Height [z]	Length [x]	Length [x]	Length [custom]	Width [custom]	Width [custom]
Apex Tool Group T0054470999N	Soldering	1.437 in	36.5 mm	Sloped 45°	Weller® WP120 WXP120
Apex Tool Group T0054470699N	Soldering		34.5 mm	Chisel	WP120	0.181 in	4.6 mm	0.031 "	0.8 mm	1.358 "
Apex Tool Group T0054470199	Soldering			Chisel	WP120	0.063 in	1.6 mm	0.039 in	1 mm	1.555 in	39.5 mm
Apex Tool Group T0054470899N	Soldering	1.437 in	36.5 mm	Round 60°	Weller® WP120 WXP120
Apex Tool Group T0054470499	Soldering		36 mm	Chisel	WP120	0.094 in	2.4 mm	0.031 "	0.8 mm			1.417 in
Apex Tool Group T0054470799N	Soldering		34.5 mm	Chisel	WP120			0.047 in	1.19 mm	1.358 "			0.232 in	5.9 mm
Apex Tool Group T0054470399	Soldering	1.437 in	36.5 mm	Chisel	WP120	0.063 in	1.6 mm	0.028 in	0.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.80

General part information

XT AA 60 SOLDERING TIP 1 6MM
