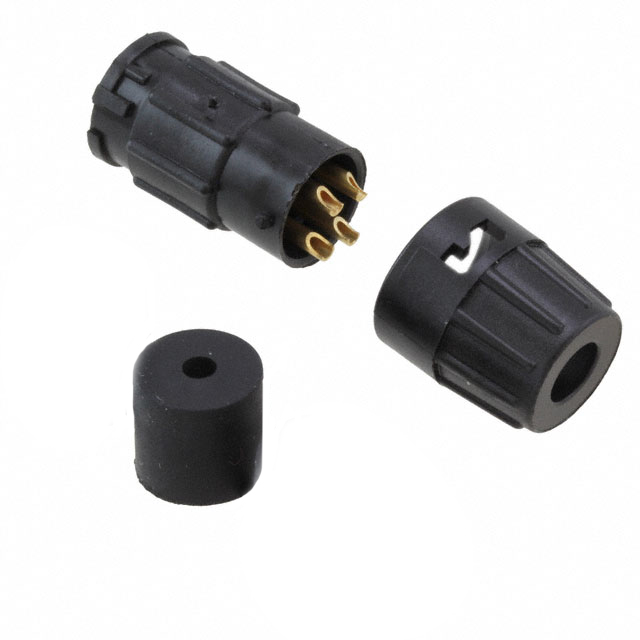

8382-4PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8382-4PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8382-4PG-3DC

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

8382-4PG Series

Part	Shielding	Fastening Type	Primary Material	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Current Rating (Amps)	Number of Positions	Mounting Type	Contact Material	Applications	Ingress Protection	Backshell Material, Plating	Color	Contact Finish - Mating	Voltage Rating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 8382-4PG-311	Unshielded	Bayonet Lock	Plastic	Male Pins Receptacle	Backshell	-40 °C	115 °C	Keyed	Varies by Wire Gauge	4	Free Hanging (In-Line)	Brass	Automotive Communication Systems Instrumentation	Weathertight	Nylon Polyamide (PA)	Black	Gold	600 V	2.29 mm	0.09 in 0.14 in	3.56 mm
Conxall/Switchcraft 8382-4PG-315	Unshielded	Bayonet Lock	Plastic	Male Pins Receptacle	Backshell	-40 °C	115 °C	Keyed	Varies by Wire Gauge	4	Free Hanging (In-Line)	Brass	Automotive Communication Systems Instrumentation	Weathertight	Nylon Polyamide (PA)	Black	Gold	600 V				0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 8382-4PG-321	Unshielded	Bayonet Lock	Plastic	Male Pins Receptacle	Backshell	-40 °C	115 °C	Keyed	Varies by Wire Gauge	4	Free Hanging (In-Line)	Brass	Automotive Communication Systems Instrumentation	Weathertight	Nylon Polyamide (PA)	Black	Gold	600 V						5.33 mm	5.84 mm	0.21 in	0.23 in
Conxall/Switchcraft 8382-4PG-3DC	Unshielded	Bayonet Lock	Plastic	Male Pins Receptacle	Backshell	-40 °C	115 °C	Keyed	Varies by Wire Gauge	4	Free Hanging (In-Line)	Brass	Automotive Communication Systems Instrumentation	Weathertight	Nylon Polyamide (PA)	Black	Gold	600 V
Conxall/Switchcraft 8382-4PG-522	Unshielded	Bayonet Lock	Plastic	Male Pins Receptacle	Backshell	-40 °C	115 °C	Keyed	Varies by Wire Gauge	4	Free Hanging (In-Line)	Brass	Automotive Communication Systems Instrumentation	Weathertight	Nylon Polyamide (PA)	Black	Gold	600 V						5.59 mm		0.22 in	0.25 in	6.35 mm
Conxall/Switchcraft 8382-4PG-318	Unshielded	Bayonet Lock	Plastic	Male Pins Receptacle	Backshell	-40 °C	115 °C	Keyed	Varies by Wire Gauge	4	Free Hanging (In-Line)	Brass	Automotive Communication Systems Instrumentation	Weathertight	Nylon Polyamide (PA)	Black	Gold	600 V											4.57 mm	0.18 in	0.2 in	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.32
		10	$ 7.38
		25	$ 7.09
		50	$ 6.81
		100	$ 6.66

Description

General part information

8382-4PG Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup
