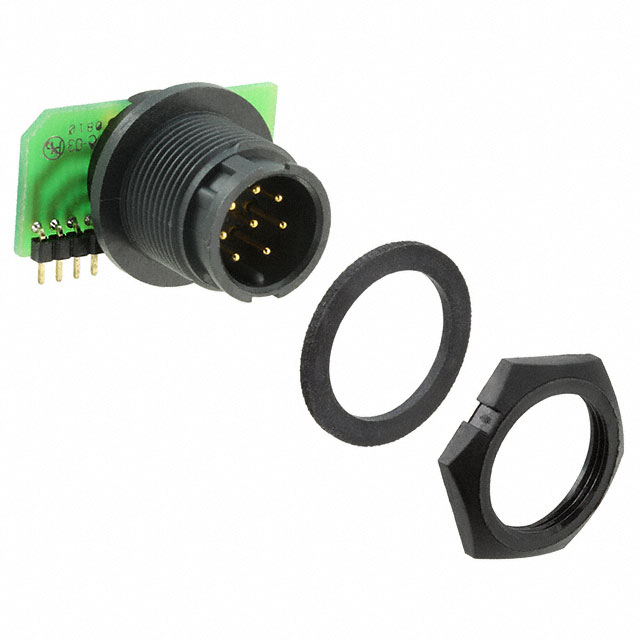

7251-8PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7251-8PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Circuit Board, Solder

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Color	Applications	Termination	Mounting Type	Shielding	Mounting Feature	Material Flammability Rating	Primary Material	Contact Finish - Mating	Connector Type	Insert Material	Fastening Type	Contact Material	Orientation	Current Rating (Amps)	Ingress Protection
Conxall/Switchcraft 7251-8PG-300	8	85 °C	-40 °C	Nylon Polyamide (PA)	Black	Automotive Communication Systems Instrumentation	Circuit Board Solder	Panel Mount Right Angle Through Hole	Unshielded	Bulkhead - Front Side Nut	UL94 V-0	Plastic	Gold	Male Pins Receptacle	Thermoplastic	Bayonet Lock	Copper Alloy	Keyed	Varies by Wire Gauge	Weathertight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder
