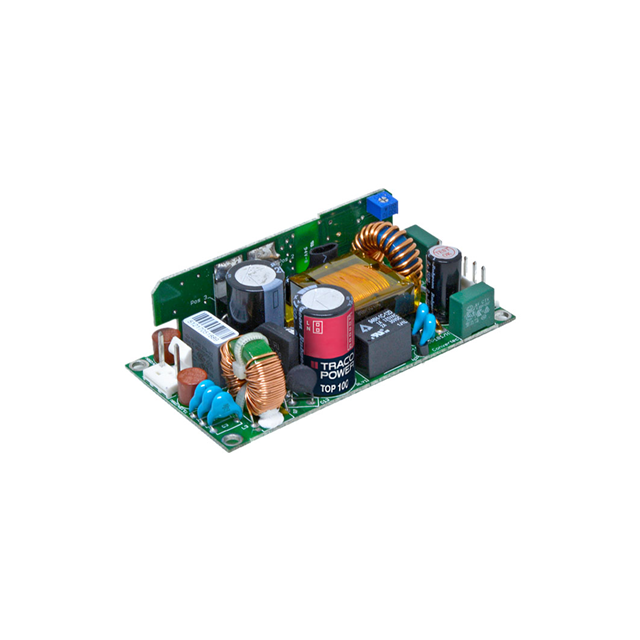

TOP 100-115

Active

Traco Power

AC/DC CONVERTER 15V 101W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTOP 100 Certs Datasheet

TOP 100-115

Active

Traco Power

AC/DC CONVERTER 15V 101W

Deep-Dive with AI

DocumentsTOP 100 Certs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TOP 100-115

Applications	ITE (Commercial)
Approval Agency	cURus, CE, cCSAus, SIQ, CB
Current - Output 1	6.7 A
Efficiency	92 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	101 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Type	Open Frame
Voltage - Input [Max]	132 VAC, 264 VAC
Voltage - Input [Min]	187 VAC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

TOP 100 Series

Switching Power Supplies

Part	Number of Outputs	Voltage - Output 1	Power (Watts)	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Efficiency	Voltage - Isolation	Current - Output 1	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Type	Size / Dimension [z]	Size / Dimension [y]
Traco Power TOP 100-112C	1	12 V	100 W	CB cCSAus CE cURus SIQ	132 VAC 264 VAC	90 VAC 187 VAC	ITE (Commercial)	92 %	3000 V	8.3 A	Chassis Mount	-25 °C	70 °C	63 mm	144 mm	31 mm	1.22 in	2.48 in	5.67 in	Adjustable Output Universal Input	Enclosed
Traco Power TOP 100-105C	1	5 V	100 W	CB cCSAus CE cURus SIQ	132 VAC 264 VAC	90 VAC 187 VAC	ITE (Commercial)	92 %	3000 V	20 A	Chassis Mount	-25 °C	70 °C	63 mm	144 mm	31 mm	1.22 in	2.48 in	5.67 in	Adjustable Output Universal Input	Enclosed
Traco Power TOP 100-105	1	5 V	100 W	CB cCSAus CE cURus SIQ	132 VAC 264 VAC	90 VAC 187 VAC	ITE (Commercial)	92 %	3000 V	20 A	Chassis Mount	-25 °C	70 °C		101.6 mm		1.25 "	2 in	4 in	Adjustable Output Universal Input	Open Frame	31.8 mm	50.8 mm
Traco Power TOP 100-148	1	48 V	101 W	CB cCSAus CE cURus SIQ	132 VAC 264 VAC	90 VAC 187 VAC	ITE (Commercial)	92 %	3000 V	2.1 A	Chassis Mount	-25 °C	70 °C		101.6 mm		1.25 "	2 in	4 in	Adjustable Output	Open Frame	31.8 mm	50.8 mm
Traco Power TOP 100-115	1	15 V	101 W	CB cCSAus CE cURus SIQ	132 VAC 264 VAC	90 VAC 187 VAC	ITE (Commercial)	92 %	3000 V	6.7 A	Chassis Mount	-25 °C	70 °C		101.6 mm		1.25 "	2 in	4 in	Adjustable Output Universal Input	Open Frame	31.8 mm	50.8 mm
Traco Power TOP 100-112	1	12 V	100 W	CB cCSAus CE cURus SIQ	132 VAC 264 VAC	90 VAC 187 VAC	ITE (Commercial)	92 %	3000 V	8.3 A	Chassis Mount	-25 °C	70 °C		101.6 mm		1.25 "	2 in	4 in	Adjustable Output	Open Frame	31.8 mm	50.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 92.65
		10	$ 85.07
		25	$ 82.23
		50	$ 80.14
		100	$ 78.11
		250	$ 68.76
