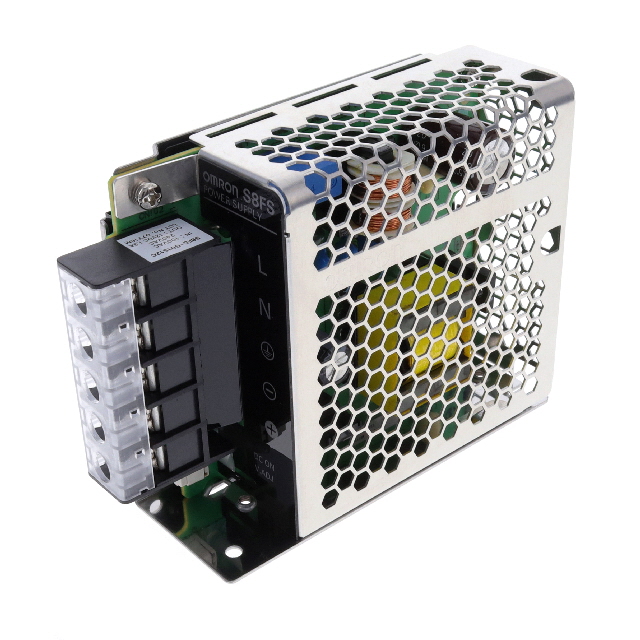

S8FS-G01512C

Active

Omron Electronics Inc-EMC Div

AC/DC CONVERTER 12V 15W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC CONVERTER 12V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	S8FS-G01512C

Applications	ITE (Commercial)
Approval Agency	cURus, TUV, UL, CE
Current - Output 1	1.3 A
Efficiency	84 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	15 W
Size / Dimension [x]	3.9 "
Size / Dimension [x]	99 mm
Size / Dimension [y]	82 mm
Size / Dimension [y]	3.23 "
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35 mm
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Type	Mounting Type	Applications	Voltage - Isolation	Number of Outputs	Current - Output 1	Approval Agency	Power (Watts)	Features	Voltage - Input [Min]	Voltage - Input [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type	Current - Output (Max) [Max]
Omron Electronics Inc-EMC Div S8FS-G01515C	15 V	-20 °C	70 °C	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	84 %	Enclosed	Chassis Mount	Industrial ITE (Commercial)	3000 V	1	1 A	CE cURus TUV UL	15 W	Adjustable Output Universal Input	85 VAC 120 VDC	264 VAC 370 VDC
Omron Electronics Inc-EMC Div S8FS-G01512C	12 V	-20 °C	70 °C	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	84 %	Enclosed	Chassis Mount	ITE (Commercial)	3000 V	1	1.3 A	CE cURus TUV UL	15 W	Adjustable Output DC Input Capable Universal Input
Omron Electronics Inc-EMC Div S8FS-G01524CD	24 V	-20 °C	70 °C	3.23 in	82 mm	3.9 "	36.2 mm	1.43 "	99 mm	86 %			ITE (Commercial)	3000 V	1		CE cURus TUV UL	15 W	Adjustable Output Universal Input			85 VAC	264 VAC	AC	650 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
