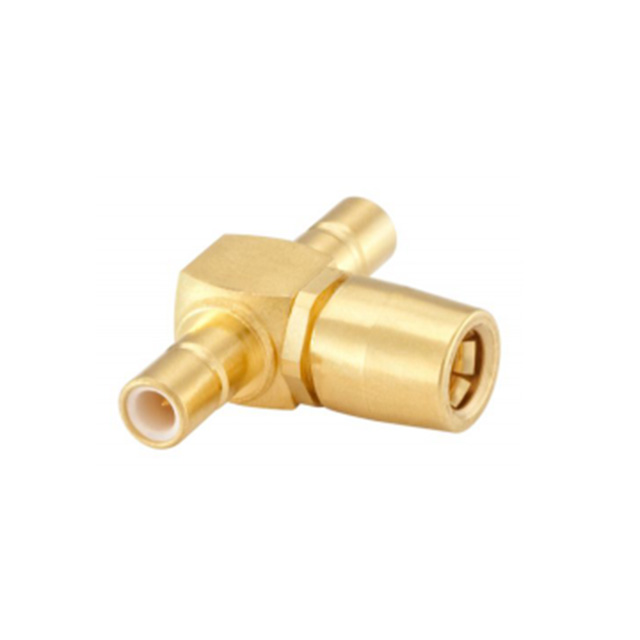

59S301-K00L5

Active

Rosenberger

CONN T ADAPT SMB JACK TO 2 SMB P

Search across all available documentation for this part.

Active

Rosenberger

CONN T ADAPT SMB JACK TO 2 SMB P

Technical Specifications

Parameters and characteristics for this part

Specification	59S301-K00L5

Adapter Series	SMB to SMB, Dual
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMB Jack, Female Socket
Convert To (Adapter End)	SMB Plug, Male Pin (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	T-Shape

Part	Adapter Series	Impedance	Frequency - Max [Max]	Convert To (Adapter End)	Center Contact Material	Mounting Type	Fastening Type	Convert From (Adapter End)	Body Material	Body Finish	Style	Dielectric Material	Conversion Type	Adapter Type	Mating Cycles	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 59S301-K00L5	SMB to SMB Dual	50 Ohms	4 GHz	Male Pin (2) SMB Plug	Beryllium Copper Brass	Free Hanging (In-Line)	Snap-On	Female Socket SMB Jack	Brass	Gold	T-Shape	Polytetrafluoroethylene (PTFE)	Same Series	Plug to Jack	500	Gold	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	19	$ 33.92

General part information

Adapter Coaxial Connector SMB Jack, Female Socket To SMB Plug, Male Pin (2) 50 Ohms
