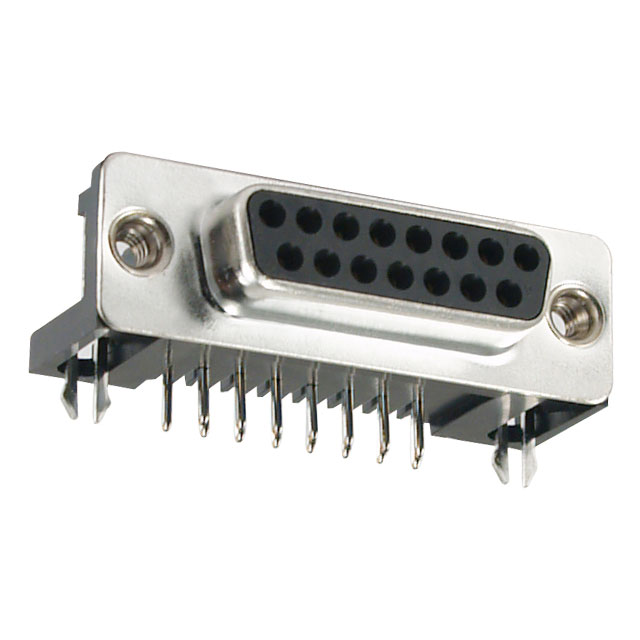

K22X-A15S-N

Active

Kycon, Inc.

CONN D-SUB RCPT 15POS R/A SOLDER

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN D-SUB RCPT 15POS R/A SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	K22X-A15S-N

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	30 VDC

Part	Termination	Voltage Rating	Contact Type	Connector Style	Flange Feature	Shell Material, Finish	Contact Form	Contact Finish Thickness	Number of Positions	Backset Spacing	Backset Spacing	Mounting Type	Dielectric Material	Color	Shell Size, Connector Layout	Number of Rows	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Connector Type	Contact Finish	Current Rating (Amps)
Kycon, Inc. K22X-A15S-N	Solder	30 VDC	Signal	D-Sub	Housing/Shell (4-40)	Nickel Plated Steel	Stamped	Flash	15	8.08 mm	0.318 "	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	Black	2	2	Phosphor Bronze	105 ░C	-55 °C	UL94 V-0	Receptacle Female Sockets	Gold	2 A
