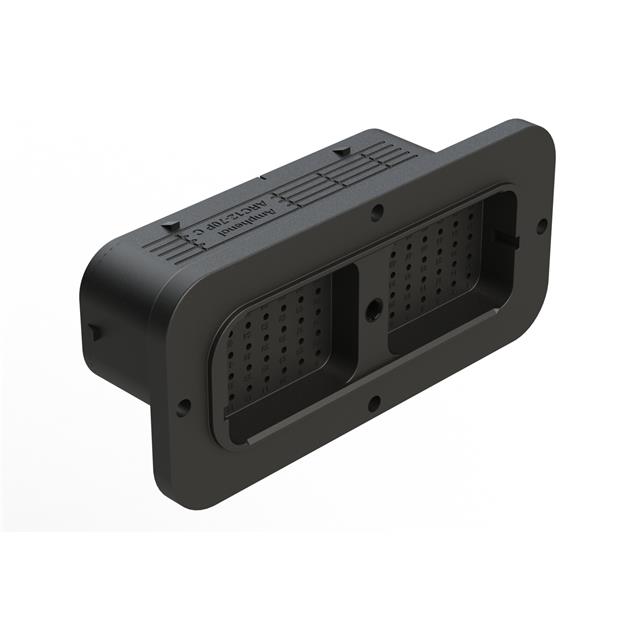

ARC12-70PC

Active

Amphenol Sine Systems Corp

70 POSITION RECEPTACLE, PIN, CON

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

70 POSITION RECEPTACLE, PIN, CON

Technical Specifications

Parameters and characteristics for this part

Specification	ARC12-70PC

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Reduced Wire Seals, IP69K, Mounting Flange, IP68, Sealed
Insulation Material	Thermoplastic
Number of Positions	70
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Color	Features	Contact Termination	Number of Positions	Insulation Material	Number of Rows
Amphenol Sine Systems Corp ARC12-24PA	Receptacle	Locking Ramp	-55 °C	125 °C	Male Pin	Black	IP68/IP69K Mounting Flange Sealed	Crimp	24	Thermoplastic
Amphenol Sine Systems Corp ARC12-40PD	Receptacle	Locking Ramp	-55 °C	125 °C	Male Pin	Black	IP68/IP69K Mounting Flange Sealed	Crimp	40	Thermoplastic
Amphenol Sine Systems Corp ARC12-70PC	Receptacle	Locking Ramp	-55 °C	125 °C	Male Pin	Black	IP68 IP69K Mounting Flange Reduced Wire Seals Sealed	Crimp	70	Thermoplastic	5
Amphenol Sine Systems Corp ARC12-40PB	Receptacle	Locking Ramp	-55 °C	125 °C	Male Pin	Black	IP68/IP69K Mounting Flange Sealed	Crimp	40	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

70 Rectangular Connectors - Housings Receptacle Black
