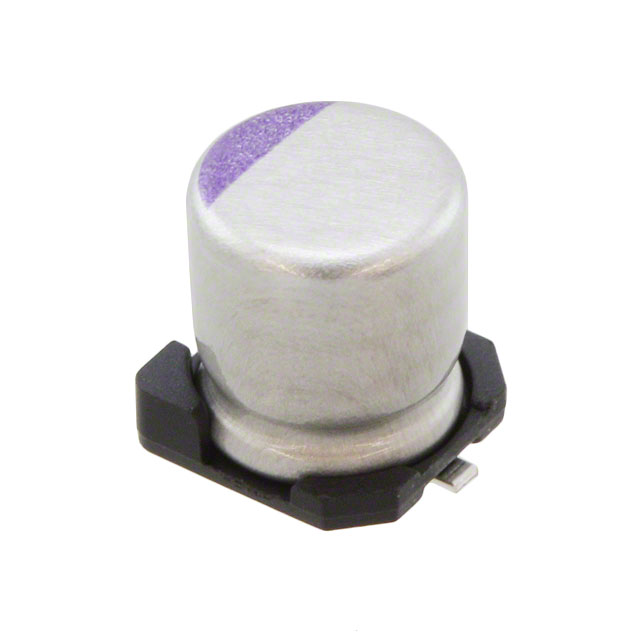

16SVP22M

Active

Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 22 ΜF, 16 V, RADIAL CAN - SMD, 0.09 OHM

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 22 ΜF, 16 V, RADIAL CAN - SMD, 0.09 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	16SVP22M

Applications	General Purpose
Capacitance	22 µF
ESR (Equivalent Series Resistance)	90 mOhm
Height - Seated (Max) [Max]	0.236 in
Height - Seated (Max) [Max]	6 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	1.06 A
Ripple Current @ Low Frequency	53 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Surface Mount Land Size [x]	0.209 in
Surface Mount Land Size [x]	5.3 mm
Surface Mount Land Size [y]	5.3 mm
Surface Mount Land Size [y]	0.209 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

Part	Ripple Current @ High Frequency	Lifetime @ Temp.	Applications	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Mounting Type	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Voltage - Rated	Package / Case	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 16SVP100M	2.67 A	2000 Hrs	General Purpose	10.3 mm	0.406 in	10.3 mm	0.406 "	20 %	8 mm	0.315 in	Polymer	Surface Mount	35 mOhms	10 mm	0.394 in	105 ░C	-55 °C	133.5 mA	16 V	Radial Can - SMD	100 µF
Panasonic Industrial Automation Sales 16SVP3R3M	660 mA	2000 Hrs	General Purpose	4.3 mm	0.169 in	4.3 mm	0.169 "	20 %			Polymer	Surface Mount	260 mOhm	4 mm	0.157 in	105 ░C	-55 °C	33 mA	16 V	Radial Can - SMD	3.3 µF	0.217 in	5.5 mm
Panasonic Industrial Automation Sales 16SVP22M	1.06 A	2000 Hrs	General Purpose	5.3 mm	0.209 in	5.3 mm	0.209 in	20 %			Polymer	Surface Mount	90 mOhm	5 mm	0.197 "	105 ░C	-55 °C	53 mA	16 V	Radial Can - SMD	22 µF	0.236 in	6 mm
Panasonic Industrial Automation Sales 16SVP330M	4.72 A	2000 Hrs	General Purpose	10.3 mm	0.406 in	10.3 mm	0.406 "	20 %	12.7 mm	0.5 in	Polymer	Surface Mount	16 mOhm	10 mm	0.394 in	105 ░C	-55 °C		16 V	Radial Can - SMD	330 µF
