Technical Specifications
Parameters and characteristics for this part
| Specification | CC3-1205SR-E |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 600 mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SMD Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 0.9 " |
| Size / Dimension [x] | 22.9 mm |
| Size / Dimension [y] | 16.6 mm |
| Size / Dimension [y] | 0.65 in |
| Size / Dimension [z] | 8.8 mm |
| Size / Dimension [z] | 0.35 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.42 | |
| 10 | $ 11.97 | |||
| 25 | $ 11.19 | |||
| 50 | $ 10.63 | |||
Description
General part information
CC3-1205 Series

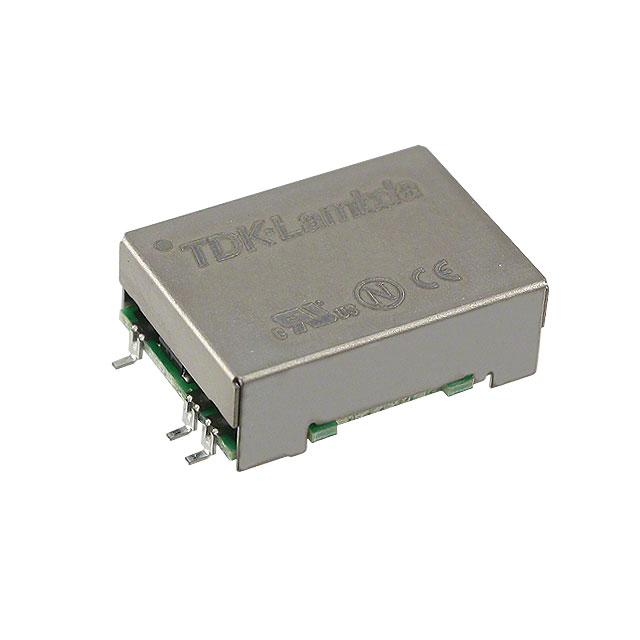

Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 18V Input
