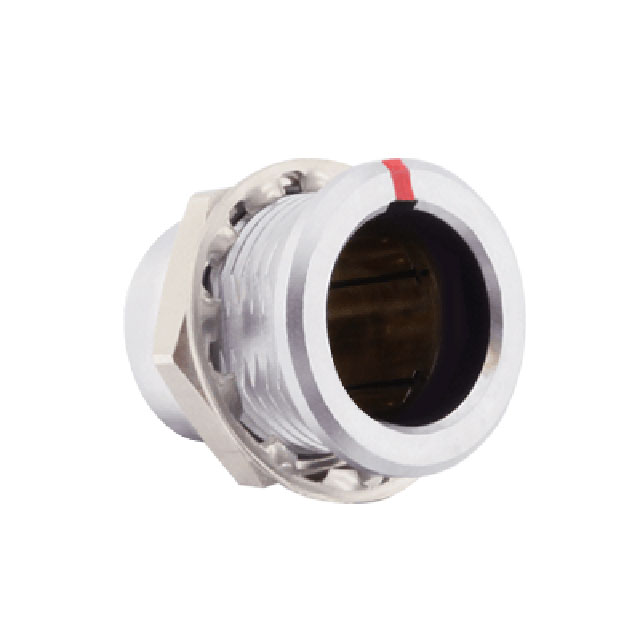

JBXER3G14MCSDSR

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 14POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JBXER3G14MCSDSR

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 14POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JBXER3G14MCSDSR

Applications	Instrumentation, Medical, Telecommunications, Industrial
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	9 A
Fastening Type	Push-Pull
Ingress Protection	IP40
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Shielded
Termination	Crimp
Voltage Rating	830 V

JBXER3G Series

Part	Current Rating (Amps)	Shielding	Orientation	Applications	Fastening Type	Mounting Feature	Voltage Rating	Material Flammability Rating	Color	Number of Positions	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Ingress Protection	Shell Material	Primary Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Finish	Termination
Souriau-Sunbank by Eaton JBXER3G10FSSDSR	12 A	Shielded	G	Industrial Instrumentation Medical Telecommunications	Push-Pull	Bulkhead - Rear Side Nut	660 V	UL94 V-0	Silver	10	Gold	125 °C	-40 °C	Polyetheretherketone (PEEK)	IP40	Brass	Metal	Receptacle Female Sockets	0.5 µm	19.7 µin	3	Chrome over Nickel
Souriau-Sunbank by Eaton JBXER3G03FSSDSR	25 A	Shielded	G	Industrial Instrumentation Medical Telecommunications	Push-Pull	Bulkhead - Rear Side Nut	1600 V	UL94 V-0	Silver		Gold	125 °C	-40 °C	Polyetheretherketone (PEEK)	IP40	Brass	Metal	Receptacle Female Sockets	0.5 µm	19.7 µin	3	Chrome over Nickel
Souriau-Sunbank by Eaton JBXER3G18MSSDSR	7 A	Shielded	G	Industrial Instrumentation Medical Telecommunications	Push-Pull	Bulkhead - Rear Side Nut	660 V	UL94 V-0	Silver	18	Gold	125 °C	-40 °C	Polyetheretherketone (PEEK)	IP40	Brass	Metal	Male Pins Receptacle	0.5 µm	19.7 µin	3	Chrome over Nickel
Souriau-Sunbank by Eaton JBXER3G03FCSDSR	25 A	Shielded	G	Industrial Instrumentation Medical Telecommunications	Push-Pull	Bulkhead - Rear Side Nut	1600 V	UL94 V-0	Silver		Gold	125 °C	-40 °C	Polyetheretherketone (PEEK)	IP40	Brass	Metal	Receptacle Female Sockets	0.5 µm	19.7 µin	3	Chrome over Nickel	Crimp
Souriau-Sunbank by Eaton JBXER3G04FCSDSR	25 A	Shielded	G	Industrial Instrumentation Medical Telecommunications	Push-Pull	Bulkhead - Rear Side Nut	1100 V	UL94 V-0	Silver	4	Gold	125 °C	-40 °C	Polyetheretherketone (PEEK)	IP40	Brass	Metal	Receptacle Female Sockets	0.5 µm	19.7 µin	3	Chrome over Nickel	Crimp
Souriau-Sunbank by Eaton JBXER3G30FSSDSR	3.5 A	Shielded	G	Industrial Instrumentation Medical Telecommunications	Push-Pull	Bulkhead - Rear Side Nut	400 V	UL94 V-0	Silver	30	Gold	125 °C	-40 °C	Polyetheretherketone (PEEK)	IP40	Brass	Metal	Receptacle Female Sockets	0.5 µm	19.7 µin	3	Chrome over Nickel
Souriau-Sunbank by Eaton JBXER3G14MCSDSR	9 A	Shielded	G	Industrial Instrumentation Medical Telecommunications	Push-Pull	Bulkhead - Rear Side Nut	830 V	UL94 V-0	Silver	14	Gold	125 °C	-40 °C	Polyetheretherketone (PEEK)	IP40	Brass	Metal	Male Pins Receptacle	0.5 µm	19.7 µin	3	Chrome over Nickel	Crimp
Souriau-Sunbank by Eaton JBXER3G14FSSDSR	9 A	Shielded	G	Industrial Instrumentation Medical Telecommunications	Push-Pull	Bulkhead - Rear Side Nut	830 V	UL94 V-0	Silver	14	Gold	125 °C	-40 °C	Polyetheretherketone (PEEK)	IP40	Brass	Metal	Receptacle Female Sockets	0.5 µm	19.7 µin	3	Chrome over Nickel
Souriau-Sunbank by Eaton JBXER3G18MCSDSR	7 A	Shielded	G	Industrial Instrumentation Medical Telecommunications	Push-Pull	Bulkhead - Rear Side Nut	660 V	UL94 V-0	Silver	18	Gold	125 °C	-40 °C	Polyetheretherketone (PEEK)	IP40	Brass	Metal	Male Pins Receptacle	0.5 µm	19.7 µin	3	Chrome over Nickel	Crimp
Souriau-Sunbank by Eaton JBXER3G07FCSDSR	15 A	Shielded	G	Industrial Instrumentation Medical Telecommunications	Push-Pull	Bulkhead - Rear Side Nut	1000 VDC	UL94 V-0	Silver	7	Gold	125 °C	-40 °C	Polyetheretherketone (PEEK)	IP40	Brass	Metal	Receptacle Female Sockets	0.5 µm	19.7 µin	3	Chrome over Nickel	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 66.48

Description

General part information

JBXER3G Series

14 Position Circular Connector Receptacle, Male Pins Crimp
