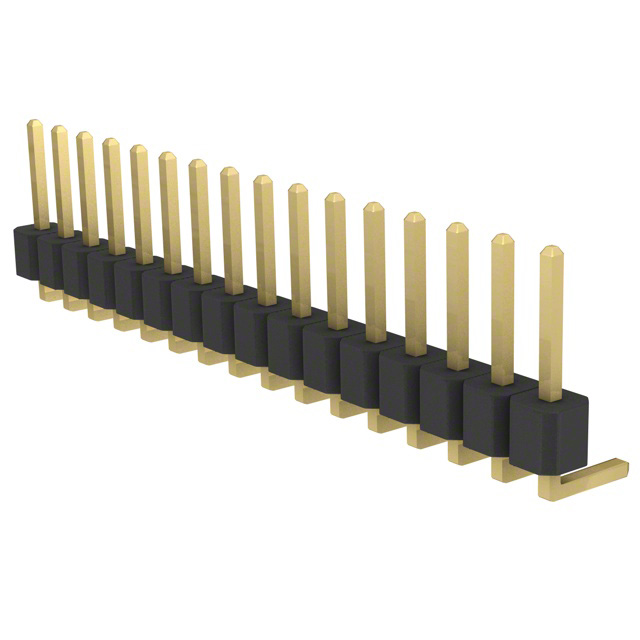

PRPC016SBAN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC016SBAN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC016SBAN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC016 Series

Part	Pitch - Mating	Pitch - Mating	Connector Type	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Material	Shrouding	Insulation Height [z]	Insulation Height [z]	Termination	Contact Length - Mating [x]	Contact Length - Mating	Insulation Material	Style	Contact Shape	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Color	Number of Positions Loaded	Fastening Type	Contact Finish - Mating	Mounting Type	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Length - Mating [x]	Overall Contact Length
Sullins Connector Solutions PRPC016DABN-RC	0.1 in	2.54 mm	Breakaway Header	2	2.54 mm	0.1 in	0.558 in	14.18 mm	Flash	Gold	Flash	Brass	Unshrouded	0.098 in	2.5 mm	Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Board to Board Cable	Square	UL94 V-0	-40 °C	105 ░C	Male Pin	Black	All	Push-Pull	Gold	Through Hole	0.23 in	5.84 mm	3 A
Sullins Connector Solutions PRPC016SGAN-M71RC	0.1 in	2.54 mm	Breakaway Header	1					Flash	Gold	Flash	Brass	Unshrouded	0.098 in	2.5 mm	Solder	0.318 "		Polybutylene Terephthalate (PBT)	Board to Board Cable	Square	UL94 V-0	-40 °C	105 ░C	Male Pin	Black	All	Push-Pull	Gold	Through Hole Right Angle			3 A	0.12 in	3.05 mm	16	8.08 mm
Sullins Connector Solutions PRPC016SFAN-RC	0.1 in	2.54 mm	Breakaway Header	1				0.537 "	Flash	Gold	Flash	Brass	Unshrouded	0.098 in	2.5 mm	Solder	0.318 "		Polybutylene Terephthalate (PBT)	Board to Board Cable	Square	UL94 V-0	-40 °C	105 ░C	Male Pin	Black	All	Push-Pull	Gold	Through Hole			3 A	0.12 in	3.05 mm	16	8.08 mm	13.63 mm
Sullins Connector Solutions PRPC016SACN-RC	0.1 in	2.54 mm	Breakaway Header	1			0.648 in	16.47 mm	Flash	Gold	Flash	Brass	Unshrouded	0.098 in	2.5 mm	Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Board to Board Cable	Square	UL94 V-0	-40 °C	105 ░C	Male Pin	Black	All	Push-Pull	Gold	Through Hole			3 A	0.32 in	8.13 mm	16
Sullins Connector Solutions PRPC016SBAN-M71RC	0.1 in	2.54 mm	Breakaway Header	1					Flash	Gold	Flash	Brass	Unshrouded	0.098 in	2.5 mm	Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Board to Board Cable	Square	UL94 V-0	-40 °C	105 ░C	Male Pin	Black	All	Push-Pull	Gold	Through Hole Right Angle			3 A	0.12 in	3.05 mm	16
Sullins Connector Solutions PRPC016DAAN-RC	0.1 in	2.54 mm	Breakaway Header	2	2.54 mm	0.1 in	0.448 in	11.39 mm	Flash	Gold	Flash	Brass	Unshrouded	0.098 in	2.5 mm	Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Board to Board Cable	Square	UL94 V-0	-40 °C	105 ░C	Male Pin	Black	All	Push-Pull	Gold	Through Hole			3 A	0.12 in	3.05 mm
Sullins Connector Solutions PRPC016SAAN-RC	0.1 in	2.54 mm	Breakaway Header	1			0.448 in	11.39 mm	Flash	Gold	Flash	Brass	Unshrouded	0.098 in	2.5 mm	Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Board to Board Cable	Square	UL94 V-0	-40 °C	105 ░C	Male Pin	Black	All	Push-Pull	Gold	Through Hole			3 A	0.12 in	3.05 mm	16
Sullins Connector Solutions PRPC016SADN-RC	0.1 in	2.54 mm	Breakaway Header	1			0.748 in	19.01 mm	Flash	Gold	Flash	Brass	Unshrouded	0.098 in	2.5 mm	Solder	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Board to Board Cable	Square	UL94 V-0	-40 °C	105 ░C	Male Pin	Black	All	Push-Pull	Gold	Through Hole			3 A	0.42 in	10.67 mm	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.36
		100	$ 0.30
		500	$ 0.26
		1000	$ 0.21
		5000	$ 0.19
		10000	$ 0.18

Description

General part information

PRPC016 Series

Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
