ITRA-0235-D103

Active

SCHURTER Inc.

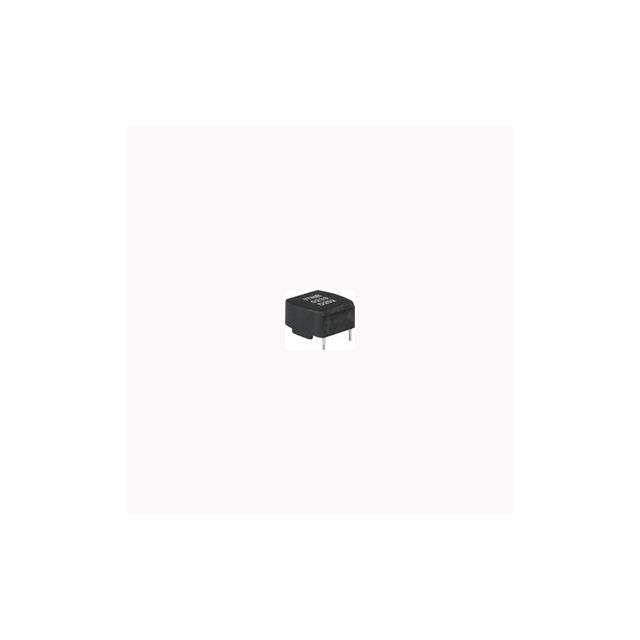

ITRA PULSE TRANSFORMER THT 0.1A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ITRA PULSE TRANSFORMER THT 0.1A

Technical Specifications

Parameters and characteristics for this part

Specification	ITRA-0235-D103

Height - Seated (Max) [Max] [z]	10.6 mm
Height - Seated (Max) [Max] [z]	0.417 in
Inductance	2.8 mH
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	15.2 mm
Size / Dimension [y]	0.598 in
Transformer Type	Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary	1:1
Weight	0.28 oz
Weight	7.98 g

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight	Weight	Inductance	Transformer Type	Turns Ratio - Primary:Secondary	Operating Temperature [custom]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
SCHURTER Inc. ITRA-0235-D103	10.6 mm	0.417 in	0.28 oz	7.98 g	2.8 mH	Isolation and Data Interface (Encapsulated)	1:1	-25 °C 100 °C	Through Hole	13 mm	15.2 mm	0.512 in	0.598 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	960	$ 3.41

General part information

2.8mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Through Hole
