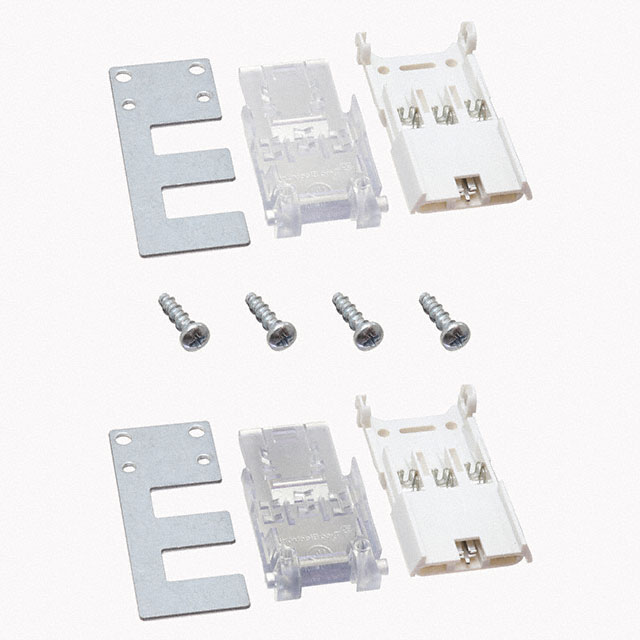

CPGI-1116377-2

Obsolete

TE Energy & Utilities

CPGI-1116377-2

Search across all available documentation for this part.

Obsolete

TE Energy & Utilities

CPGI-1116377-2

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Number of Circuits	Pitch [x]	Pitch [x]	Color	Barrier Type	Number of Rows	Mounting Type	Terminal Block Type	Bottom Termination	Number of Wire Entries	Features	Termination	Terminal Type	Insulation	Number of Circuits [custom]
TE Energy & Utilities CPGI-1546310-6	10 AWG	30 AWG	Screws	6	0.563 in	14.3 mm	Black	2 Wall (Dual)	2	Chassis Panel	Barrier Block	Closed	12	Flange
TE Energy & Utilities CPGI-B-106-2401/1501-6										Free Hanging (In-Line)					Crimp	Standard
TE Energy & Utilities CPGI-CCS-18-10-S-12																	Non-Insulated
TE Energy & Utilities CPGI-1116377-2	12 AWG	14 AWG											2		Crimp	Inline Tap	Fully Insulated
TE Energy & Utilities CPGI-B-106-2503/1503-5	10 AWG	12 AWG								Free Hanging (In-Line)					Crimp	Standard
TE Energy & Utilities CPGI-1546310-8	10 AWG	30 AWG	Screws		0.563 in	14.3 mm	Black	2 Wall (Dual)	2	Chassis Panel	Barrier Block	Closed	16	Flange				8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminal Inline, Tap Connector Crimp 12-14 AWG
