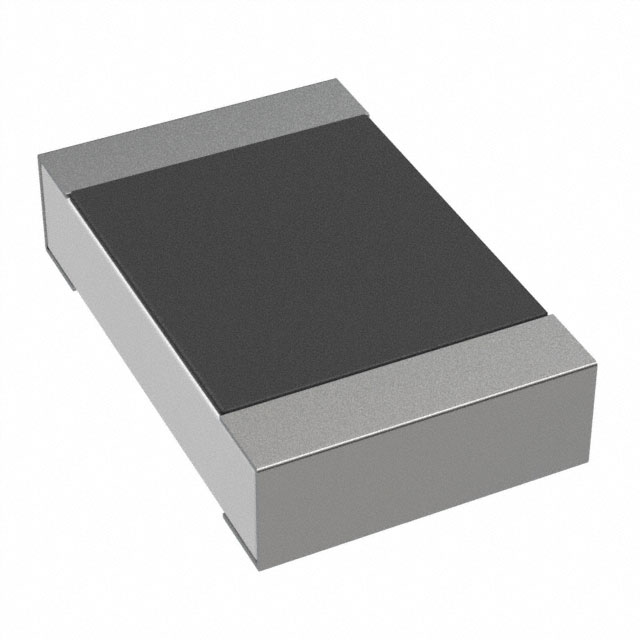

RK73B2ATTD272J

Active

KOA Speer Electronics, Inc.

RES 2.7K OHM 5% 1/4W 0805

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RK73B2ATTD272J

Active

KOA Speer Electronics, Inc.

RES 2.7K OHM 5% 1/4W 0805

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RK73B2ATTD272J

Composition	Thick Film
Features	Automotive AEC-Q200
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Power (Watts)	0.25 W
Power (Watts)	250 mW
Ratings	AEC-Q200
Resistance	2.7 kOhms
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Supplier Device Package	0805
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

RK73B2A Series

...

Part	Tolerance	Resistance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Terminations	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Supplier Device Package	Power (Watts)	Power (Watts)	Ratings	Composition	Temperature Coefficient	Features
KOA Speer Electronics, Inc. RK73B2ARTTD220J	5 %	22 Ohms	2 mm	0.079 in	0.049 in	1.25 mm	2	155 °C	-55 °C	0.6 mm	0.024 in	0805	0805	0.25 W	250 mW	AEC-Q200	Thick Film	200 ppm/°C	Anti-Sulfur Automotive AEC-Q200
KOA Speer Electronics, Inc. RK73B2ARTTD911J	5 %	910 Ohms	2 mm	0.079 in	0.049 in	1.25 mm	2	155 °C	-55 °C	0.6 mm	0.024 in	0805	0805	0.25 W	250 mW	AEC-Q200	Thick Film	200 ppm/°C	Anti-Sulfur Automotive AEC-Q200
KOA Speer Electronics, Inc. RK73B2ARTTD364G	2 %	360 kOhms	2 mm	0.079 in	0.049 in	1.25 mm	2	155 °C	-55 °C	0.6 mm	0.024 in	0805	0805	0.25 W	250 mW	AEC-Q200	Thick Film	200 ppm/°C	Anti-Sulfur Automotive AEC-Q200
KOA Speer Electronics, Inc. RK73B2ATTD163G	2 %	16 kOhms	2 mm	0.079 in	0.049 in	1.25 mm	2	155 °C	-55 °C	0.6 mm	0.024 in	0805	0805	0.25 W	250 mW	AEC-Q200	Thick Film	200 ppm/°C	Automotive AEC-Q200
KOA Speer Electronics, Inc. RK73B2ATTD272J	5 %	2.7 kOhms	2 mm	0.079 in	0.049 in	1.25 mm	2	155 °C	-55 °C	0.6 mm	0.024 in	0805	0805	0.25 W	250 mW	AEC-Q200	Thick Film	200 ppm/°C	Automotive AEC-Q200
KOA Speer Electronics, Inc. RK73B2ARTTD822J	5 %	8.2 kOhms	2 mm	0.079 in	0.049 in	1.25 mm	2	155 °C	-55 °C	0.6 mm	0.024 in	0805	0805	0.25 W	250 mW	AEC-Q200	Thick Film	200 ppm/°C	Anti-Sulfur Automotive AEC-Q200
KOA Speer Electronics, Inc. RK73B2ARTTD120J	5 %	12 Ohms	2 mm	0.079 in	0.049 in	1.25 mm	2	155 °C	-55 °C	0.6 mm	0.024 in	0805	0805	0.25 W	250 mW	AEC-Q200	Thick Film	200 ppm/°C	Anti-Sulfur Automotive AEC-Q200
KOA Speer Electronics, Inc. RK73B2ATTD514G	2 %	510 kOhms	2 mm	0.079 in	0.049 in	1.25 mm	2	155 °C	-55 °C	0.6 mm	0.024 in	0805	0805	0.25 W	250 mW	AEC-Q200	Thick Film	200 ppm/°C	Automotive AEC-Q200
KOA Speer Electronics, Inc. RK73B2ARTTD271J	5 %	270 Ohms	2 mm	0.079 in	0.049 in	1.25 mm	2	155 °C	-55 °C	0.6 mm	0.024 in	0805	0805	0.25 W	250 mW	AEC-Q200	Thick Film	200 ppm/°C	Anti-Sulfur Automotive AEC-Q200
KOA Speer Electronics, Inc. RK73B2ATTD304G	2 %	300 kOhms	2 mm	0.079 in	0.049 in	1.25 mm	2	155 °C	-55 °C	0.6 mm	0.024 in	0805	0805	0.25 W	250 mW	AEC-Q200	Thick Film	200 ppm/°C	Automotive AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.03
		50	$ 0.02
		100	$ 0.01
		500	$ 0.01
		1000	$ 0.01
	Digi-Reel®	1	$ 0.10
		10	$ 0.03
		50	$ 0.02
		100	$ 0.01
		500	$ 0.01
		1000	$ 0.01
	Tape & Reel (TR)	5000	$ 0.01
		10000	$ 0.00
		15000	$ 0.00
		25000	$ 0.00
		35000	$ 0.00
		50000	$ 0.00
		125000	$ 0.00

Description

General part information

RK73B2A Series

2.7 kOhms ±5% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200 Thick Film

Documents

Technical documentation and resources
