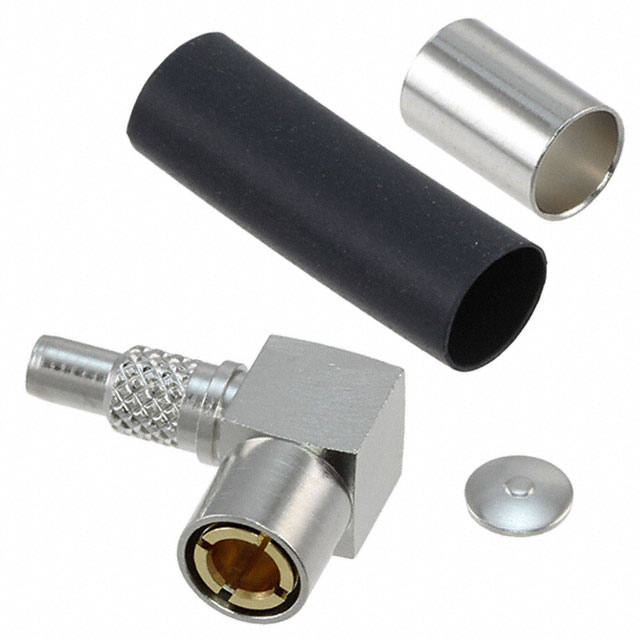

PL75-LP-1.5CV
ActiveHirose Electric USA, Inc.
CONN UMC PLUG R/A 75 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PL75-LP-1.5CV
ActiveHirose Electric USA, Inc.
CONN UMC PLUG R/A 75 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PL75-LP-1.5CV |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | Ultra Miniature (UM) |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 1.5 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Includes | 1 Heat Shrink, 2 pcs - 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 19.04 | |
| 20 | $ 15.41 | |||
| 40 | $ 14.67 | |||
| 60 | $ 14.26 | |||
| 100 | $ 13.75 | |||
| 260 | $ 12.86 | |||
| 500 | $ 12.28 | |||
Description
General part information
PL75 Series
Ultra Miniature (UM) Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line), Right Angle Solder
