19365101521

Active

HARTING Technology Group

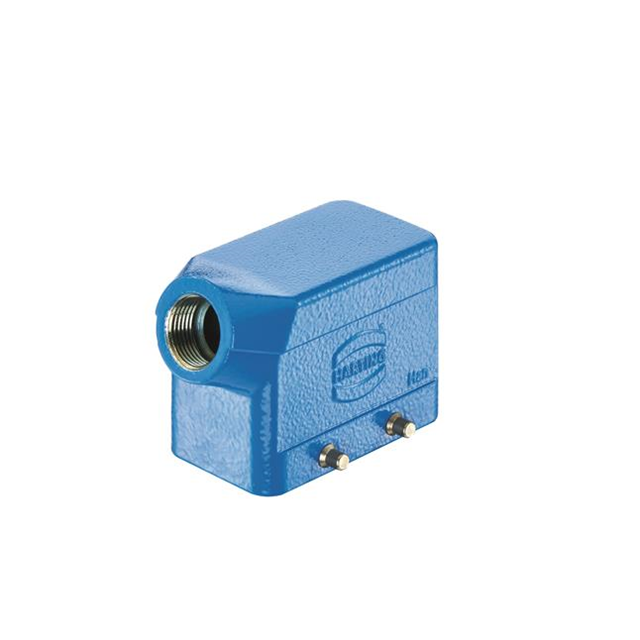

HEAVY DUTY CONNECTOR, M25, HOOD, SIDE ENTRY, ZINC BODY, 1 LEVER, 10B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M25, HOOD, SIDE ENTRY, ZINC BODY, 1 LEVER, 10B

Technical Specifications

Parameters and characteristics for this part

Specification	19365101521

Connector Type	Hood
Housing Color	Blue
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	10B
Size / Dimension [x]	2.874 in
Size / Dimension [x]	73 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	57 mm
Size / Dimension [z]	2.244 "
Style	Side Entry
Thread Size	M25

Part	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Connector Type	Housing Material	Lock Location	Ingress Protection	Thread Size	Size	Housing Finish
HARTING Technology Group 19365101520	-20 C	40 °C	Blue	Side Entry	2.874 in	57 mm	2.244 "	73 mm	1.693 in	43 mm	Hood	Zinc Die Cast	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	M20	10B	Powder Coated
HARTING Technology Group 19365101521	-20 C	40 °C	Blue	Side Entry	2.874 in	57 mm	2.244 "	73 mm	1.693 in	43 mm	Hood	Zinc Die Cast	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	M25	10B	Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 10B IP65 - Dust Tight, Water Resistant
