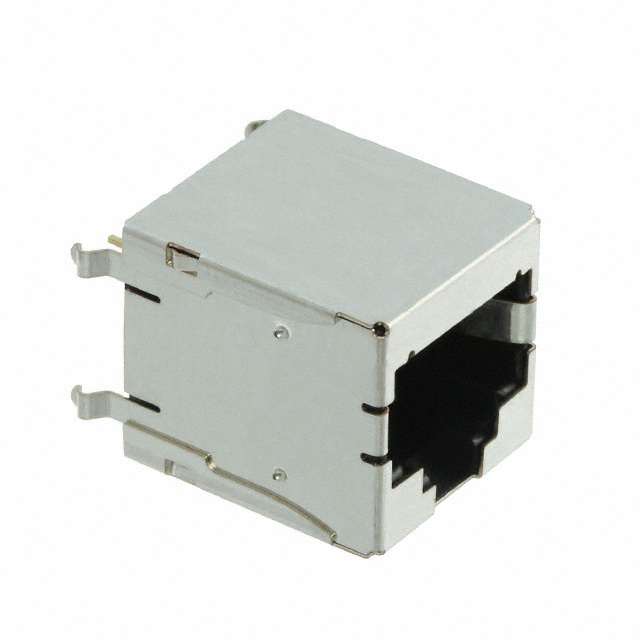

TM11R-3C-88(50)

Active

Hirose Electric USA, Inc.

CONN MOD JACK 8P8C VERT SHIELDED

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN MOD JACK 8P8C VERT SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	TM11R-3C-88(50)

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	Vertical
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

Part	Number of Ports	Connector Type	Mounting Type	Number of Positions/Contacts	LED Color	Termination	Tab Direction	Orientation	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Shielding	Housing Material	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Ratings
Hirose Electric USA, Inc. TM11R-3C-88(50)	1	Jack	Through Hole	8p8c (RJ45 Ethernet)	Does Not Contain LED	Solder	User Selectable	Vertical	1	50 µin	1.27 µm	Shielded	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM11RX-5N2-88	1	Jack	Through Hole	8p8c (RJ45 Ethernet)		Solder	Up		1	50 µin	1.27 µm	Shielded			Gold	-25 °C	80 C	90 °	Cat3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded
