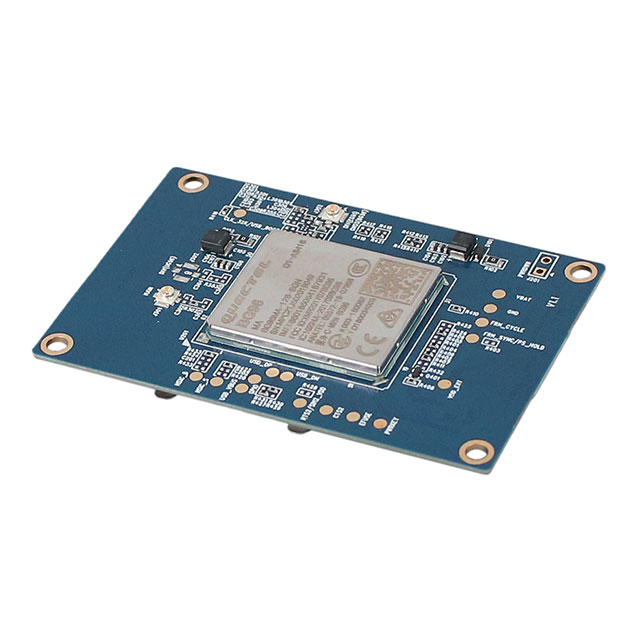

BG96MATEA-128-SGN

Active

Quectel

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Active

Quectel

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics for this part

Part	RF Family/Standard	Antenna Type	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Utilized IC / Part	Package / Case	Mounting Type	Current - Receiving	Sensitivity	Data Rate	Serial Interfaces
Quectel BG96MA-128-SGN	Cellular	Antenna Not Included	EDGE GPRS GSM HSPA LTE UMTS	4.3 V	3.3 V	850 MHz 900 MHz 1800 MHz 1900 MHz	85 °C	-40 °C	23 dBmW	MDM9206-0	Module	Surface Mount	16 mA	-117 dBm	375 kbps	ADC GPIO I2C PCM UART USB
Quectel BG96MA-MINIPCIE-S	Cellular	Antenna Not Included	EDGE GPRS GSM HSPA LTE UMTS	4.3 V	3.3 V	850 MHz 900 MHz 1800 MHz 1900 MHz	85 °C	-40 °C	23 dBmW	MDM9206-0	Module	Surface Mount	16 mA	-117 dBm	375 kbps	ADC GPIO I2C PCM UART USB
Quectel BG96MATEA-128-SGN	Cellular	Antenna Not Included	EDGE GPRS GSM HSPA LTE UMTS	4.3 V	3.3 V	850 MHz 900 MHz 1800 MHz 1900 MHz	85 °C	-40 °C	23 dBmW		Module	Surface Mount	16 mA	-117 dBm	375 kbps	ADC GPIO I2C PCM UART USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.88

General part information

Cellular EDGE, GPRS, GSM, HSPA, LTE, UMTS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
