LQH5BPN1R5NT0L

Active

Murata Power Solutions Inc.

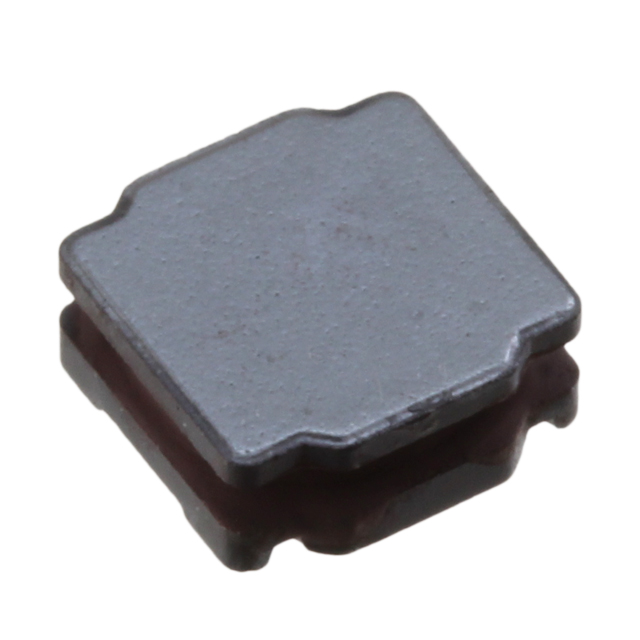

FIXED IND 1.5UH 3A 24 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Standard Land Pattern Dimensions

LQH5BPN1R5NT0L

Active

Murata Power Solutions Inc.

FIXED IND 1.5UH 3A 24 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet Standard Land Pattern Dimensions

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQH5BPN1R5NT0L

Current Rating (Amps)	3 A
DC Resistance (DCR)	24 mOhm
Height - Seated (Max) [Max] [z]	0.087 in
Height - Seated (Max) [Max] [z]	2.2 mm
Inductance	1.5 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Tolerance	30 %
Type	Wirewound, Drum Core

LQH5BPN Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Package / Case	Inductance Frequency - Test	Current - Saturation (Isat)	Frequency - Self Resonant	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Current Rating (Amps)	Material - Core	Tolerance	Mounting Type	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Supplier Device Package	Supplier Device Package	Package / Case	Supplier Device Package
Murata Power Solutions Inc. LQH5BPN100MT0L	125 °C	-40 °C	106 mOhm	Nonstandard	100 kHz	2 A	25 MHz	Shielded	0.087 in	2.2 mm	0.197 in	5 mm	0.197 "	5 mm	10 µH	1.6 A	Ferrite	20 %	Surface Mount	Drum Core Wirewound
Murata Power Solutions Inc. LQH5BPN4R7N38L	85 °C	-40 °C		Nonstandard	100 kHz	3.5 A	17 MHz	Shielded			0.193 in	4.9 mm	0.193 in	4.9 mm	4.7 ÁH	3.8 A	Ferrite	30 %	Surface Mount	Drum Core Wirewound	0.157 in	4 mm	31.2 mOhm
Murata Power Solutions Inc. LQH5BPN1R0N38L	85 °C	-40 °C	12 mOhm	Nonstandard	100 kHz	7 A	54 MHz	Shielded			0.193 in	4.9 mm	0.193 in	4.9 mm	1 µH	4.6 A	Ferrite	30 %	Surface Mount	Drum Core Wirewound	0.157 in	4 mm
Murata Power Solutions Inc. LQH5BPN1R0NT0L	85 °C	-40 °C	19 mOhm	Nonstandard	100 kHz	5.8 A	90 MHz	Shielded	0.087 in	2.2 mm	0.197 in	5 mm	0.197 "	5 mm	1 µH	3.1 A	Ferrite	30 %	Surface Mount	Drum Core Wirewound				5050 Metric	2020
Murata Power Solutions Inc. LQH5BPN100M38L	85 °C	-40 °C	56 mOhm	Nonstandard	100 kHz	2.6 A	13 MHz	Shielded			0.193 in	4.9 mm	0.193 in	4.9 mm	10 µH	2.2 A	Ferrite	20 %	Surface Mount	Drum Core Wirewound	0.157 in	4 mm
Murata Power Solutions Inc. LQH5BPN220MT0L	85 °C	-40 °C	259 mOhm	Nonstandard	100 kHz	1.4 A	15 MHz	Shielded	0.087 in	2.2 mm	0.197 in	5 mm	0.197 "	5 mm	22 µH	1.05 A	Ferrite	20 %	Surface Mount	Drum Core Wirewound				5050 Metric	2020
Murata Power Solutions Inc. LQH5BPN1R5N38L	85 °C	-40 °C		Nonstandard	100 kHz	6.5 A	50 MHz	Shielded			0.193 in	4.9 mm	0.193 in	4.9 mm	1.5 µH	4.5 A	Ferrite	30 %	Surface Mount	Wirewound	0.157 in	4 mm	16.8 mOhm
Murata Power Solutions Inc. LQH5BPN1R5NT0L	125 °C	-40 °C	24 mOhm	Nonstandard	100 kHz			Shielded	0.087 in	2.2 mm	0.197 in	5 mm	0.197 "	5 mm	1.5 µH	3 A	Ferrite	30 %	Surface Mount	Drum Core Wirewound
Murata Power Solutions Inc. LQH5BPN680M38L
Murata Power Solutions Inc. LQH5BPN151M38L	85 °C	-40 °C		2020	100 kHz	650 mA	3.5 MHz	Shielded			0.193 in	4.9 mm	0.193 in	4.9 mm	150 µH	0.63 A	Ferrite	20 %	Surface Mount	Drum Core Wirewound	0.157 in	4 mm	816 mOhm			5050 Metric	2020
